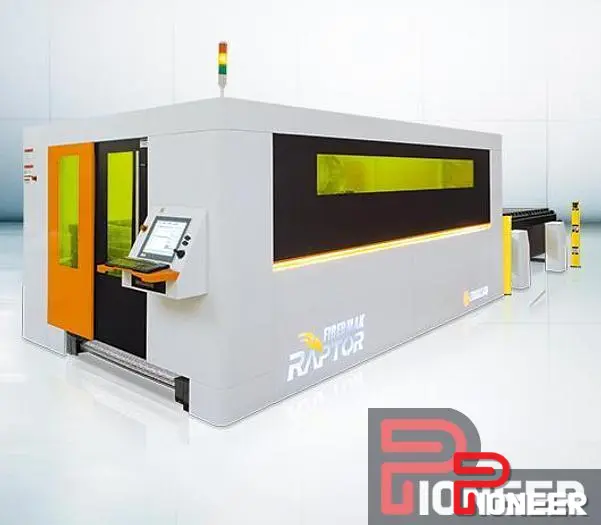

ERMAKSAN Raptor 5’ x 10’ 3kW
Laser Cutters
RAPTOR Fiber Laser Cutting machine is produced to be an alternative solution without any concession from cutting quality with its less space requirements, modular and ergonomic design compared to standard Fibermak. The raptor offers top-of-the-line cut quality, at a lower cost.
General Features:
Modular and ergonomic design
Designed as 0.5 G acceleration and 50 m/min. speed
Extraction Unit
Conveyor
Loading Unit
15” touch screen controller
Servo motor technology
High precision cutting head
Standard 500 W and 1 kW laser unit
CUTTING HEAD FEATURES
Manual adjustable focal lens
Precise height control
Protection Glass
Piercing air system
Options
PROCUTTER Auto Focus head
| Sheet-W | 60" |
| Sheet-L | 120" |
| Wattage | 3000 w |
| IPM | 2800 ipm |
| Control | CNC (BECKHOFF) |
| Dimensions | 106"(W) x 87"(H) x 343"(L) |
| Weight | 18000 |
3,000 WATT FIBERLASER
Table Size 5'x10'
Wattage 3,000 Watt IPG
Cuttiing Capacity Mild steel 3/4"
Cutting Capacity Stainless Steel 3/8"
Cutting Capacity Aluminum 5/16"
Cutting Capacity Brass 3/16"
Cutting Capacity Copper 3/16"
POSITIONING ACCURACY ± 0,004 Inch
REPETITION ACCURACY ± 0,002 Inch
CUTTING HEAD Precitec Procutter
CAD/CAM SOFTWARE LANTEK EXPERT CUT
