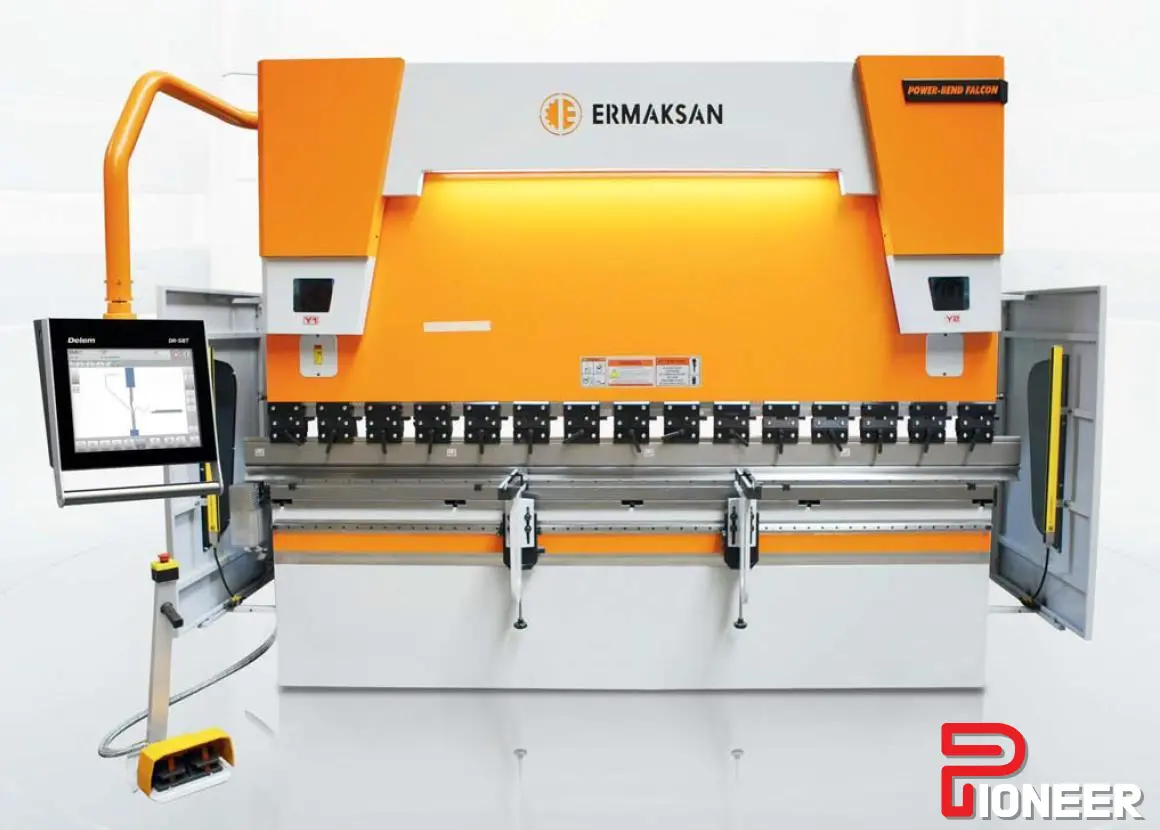

ERMAKSAN Falcon-Bend 8.5' x 110Ton w/ Delem 58T Controller
Press Brakes%20Pictures.jpg)
Explore the power of bending with the new ERMAKSAN Power Bend Falcon, featuring 110 T capacity, 4-axis precision, and advanced CNC control. Enhance your productivity with this top-tier press brake.
| Tonnage | 110 T |
| # Axis | 4 |
| Control | CNC (Delem 58-T CNC Touch Control) |
| Dimensions | 76 X 61 X 110 |
| Weight | 15428 |
BENDING LENGTH ( A ) 102,4 "
MAX. POWER 110 US Tons
MAX.BENDING CAPACITY (59748 psi) 0,20 " V=1.96"
MAX.BENDING CAPACITY (81087 psi) 0,16 " V=1.96"
MAX.BENDING CAPACITY (89622 psi) 0,16 " V=1.96"
AXIS NUMBER OF MACHINE Y1,Y2,X,R -
FREE DOWN SPEED 7,9 in/s
BENDING SPEED 0,4 in/s
RETURN BACK SPEED 6,1 in/s
STROKE ( C ) ( Y1 , Y2 ) 10,8 "
BACK GAUGE STROKE ( X AXIS ) 31,5 "
BACK GAUGE STROKE ( R AXIS ) 9,8 "
DISTANCE BETWEEN HOUSING ( B ) 86,6 "
CROWNING Motorized -
THROAT DEPTH ( E ) 16,1 "
TABLE HEIGHT ( F ) 35,4 "
TABLE WIDTH ( G ) 3,5 "
DAYLIGHT ( D ) 20,9 "
PLANT VOLTAGE 380 V
IP 54 -
MAIN MOTOR 10,05 HP
BACK GAUGE MOTORS (X ,R) 2x2,4 Nm
PLANT TEMPERATURE 0-50 ºC
MAX. NOISE 70 dB
OIL CAPACITY 39,6 US Gallons
MAX. PRESSURE 3555 psi
MACHINE LENGTH ( L ) 147,6 "
MACHINE WIDTH ( W ) 76,8 "
MACHINE WIDTH (K) 61,0 "
MACHINE HEIGHT ( H ) 110,2 "
WEIGHT 15428 lbs
DELEM DA-58T CNC Controller 1
TOTAL OF 4 AXIS (Y1,Y2, X, R) X:800 MM, R=250MM 1
ERMAKSAN TWO AXIS BACKGAUGE (X:800MM, R=250MM) 1
AMERICAN PROMECAM QUICK RELEASE 1
ROLLERI TOP TOOL ROLLERI - 0813/011/11 1
4 V DIE BOTTOM TOOL 1
275 MM HIGH STROKE 1
410 MM THROAT DEPTH 1
MOTORIZED CROWNING SYSTEM 1
230 or 460 VOLTAGE, 3PH, 60HZ 1
REAR GUARD 1
SIDE GUARDS WITH SWITCH 1
DOUBLE FOOT PEDAL CONTROLLER 1
HOERBIGER HYDRAULIC SYSTEM 1
SIEMENS ELECTRIC SYSTEM 1
SLIDING FRONT SUPPORT ARMS 2
STANDARD NARROW TABLE 1
RAL 7035, RAL 2008 COLORS 1
ENGLISH LABEL 1
ENGLISH MANUAL 1
