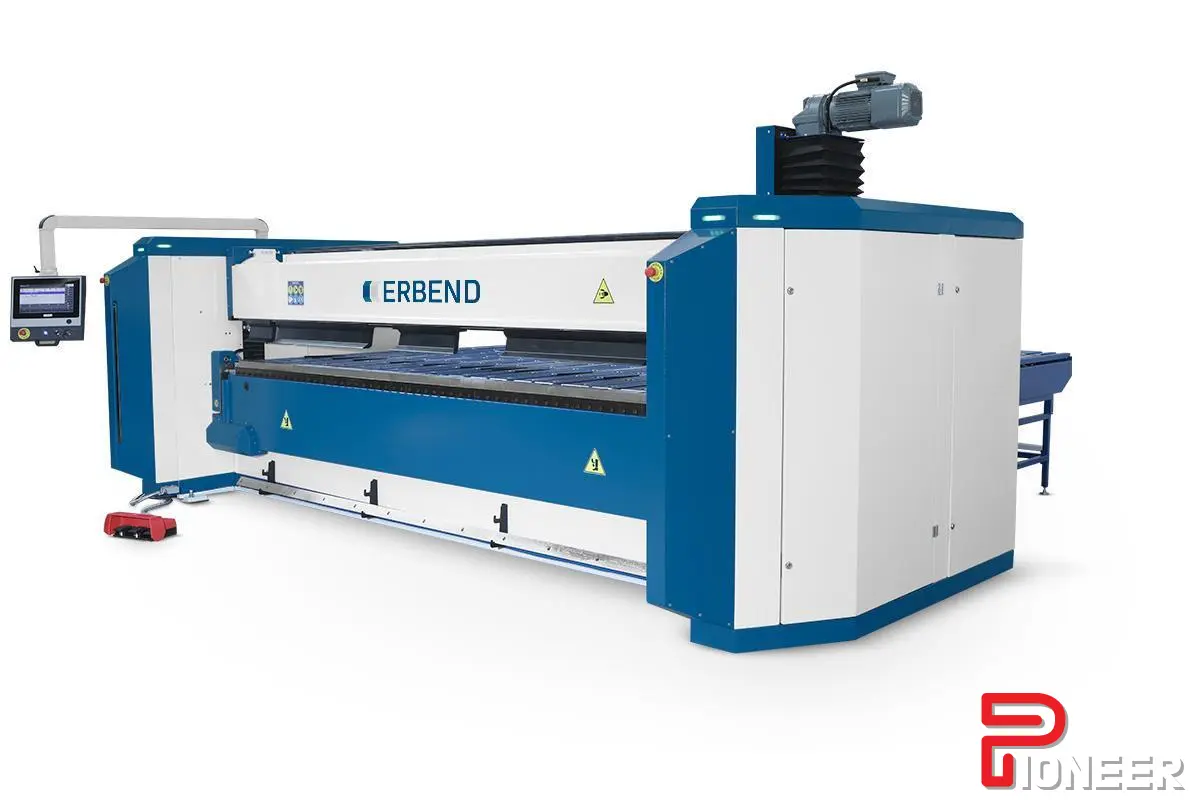

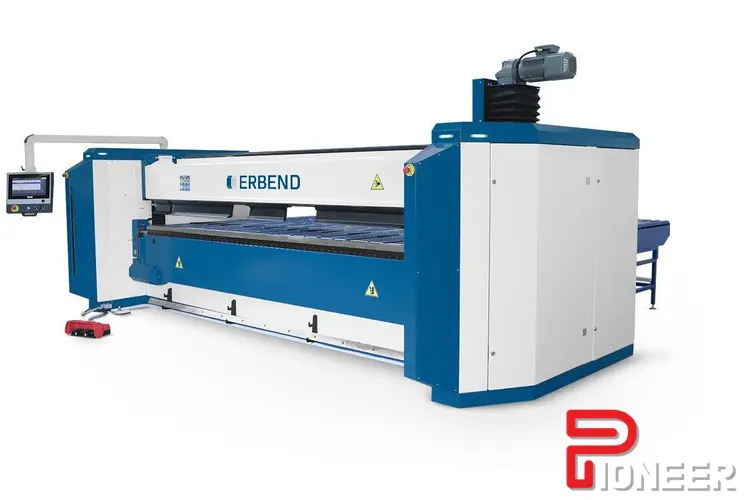

ERBEND MFAS 4225 (13ft by 13g) COMBI BEAM SERVO FOLDER

Explore the new ERBEND MFAS 4225 Servo Folder. A robust folding machine with advanced features, twin SEW drives, CNC control, and heavy-duty fingers for precision in metalworking.

Standard Features:
Twin SEW EURO DRIVE 5.5KW AC Motors for Y Axis Folding Beam, SERVO Motoirzed Drives: X, A, Z, (Clamping, Folding Adj., Back Gauge), Clamping Twin Servo Ball Screw System for More Clamping/Hemming Power, SEW EURO DRIVE AC Control C Axis (Clamping Rotation), 9.84” Clamping Beam Open Height (without tools), Servo Folding Beam Adjustment A Axis (80mm), Manual Crowning System, Heavy Duty Fingers with machined Bottom Beam finger pockets, 1500mm CNC Servo Back Gauge Gauge, 4.72” high goats foot tools Sharp Nose station 1, R1 or 20 Deg. Sharp nose clamping beam tools on Station 2., 10mm & 25mm & 35mm Folding Beam Tools, ERFOLD CNC Lıne By Line Control on Swivel Arm, & Low Profile Horziontal Light Guards
Also Included: Install/Training by Mac-Tech, Heavy Duty Fingers with Machines Bottom Beam Finger Pockets (NO CHARGE), ERFOLD Control, Amd Warranty
Recomended Options: Quick Clamp pneumatic clamping system, and L or U Shaped Back Gauge for Larger parts
