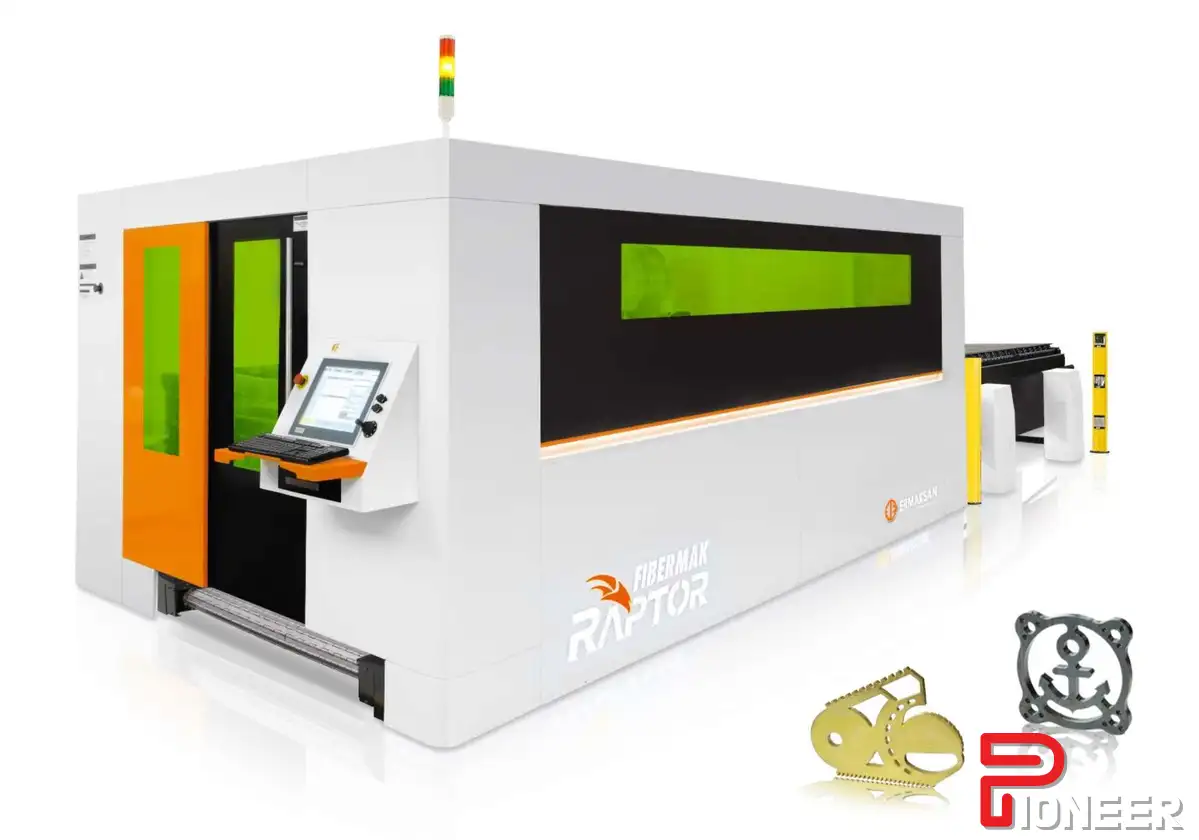

FIBERMAK RAPTOR 5 x 10 6KW YLS

RESONATOR YLR 6000 Watt
POWER RANGE 10-105 %
LASER BEAM QUALITY @ COLLIMATOR 2-4 mm mrad
POWER STABILITY 1-2 %
PULSE FREQUENCY RANGE 5 kHz
LASER WAVE LENGTH 1075 ± 5 nm
OUTPUT FIBER CORE DIAMETER 100 μm
EXCITATION laser diod
COOLING WATER FLOW RATE 10.57 Gallon/Min
CUTTING CAPACITY (High Quality)
MILD STEEL (S235JR, S355MC) 1"
STAINLESS STEEL (AISI 304) 5/8"
ALUMINUM (AlMg3) 1/2"
BRASS (CuZn37) 5/16"
COPPER (Cu-ETP) 5/16"
MAXIMUM WORKSHEET DIMENSIONS 118.1 x 59
MAXIMUM BURDEN CAPACITY 1400 pounds
MACHINE AXES 4-Axes [X, Y, Z, U ]
AXIAL MOVEMENTS
X, U AXES Servo Motorized Table 120 inch
Y AXIS Servo Motorized Bridge 61 inch
Z AXIS Servo Motorized Cutting Head 9.8 inch
ACCELERATIONS
X, U , Y, Z AXES Servo Motorized 1 G
MAXIMUM AXES VELOCITIES 4175 (simultaneous)
( X, Y single axis velocity 2953 inch/min) IPM
POSITIONING ACCURACY ± 0,0021 inch
REPETITION ACCURACY ± 0,0012 inch
SHUTTLE TABLE (Automatic Loading - Unloading Unit) 2 ( 15 sec ) palette
ASSIST GAS
Assist sensor 1 Oxygen 0,5-6 Bar
Assist sensor 2 Nitrojen 0,5-25 Bar
Assist sensor 3 Dry Air 0,5-25 Bar
CUTTING HEAD Procutter Thunder
CNC BECKHOFF CP 2215
CAD/CAM SOFTWARE Metalix
NETWORK CONNECTION Ethernet
OPERATION VIA PANEL 15-inch display 1024 x 768, alphanumeric keyboard,
PLC keys on the sides, touch screen keyboard
AVARAGE POWER CONSUMPTION 38 HP
MACHINE DIMENSIONS ( L x W x H ) 364 X 177 X 86.6
MACHINE WEIGHT 18738 pounds
