New

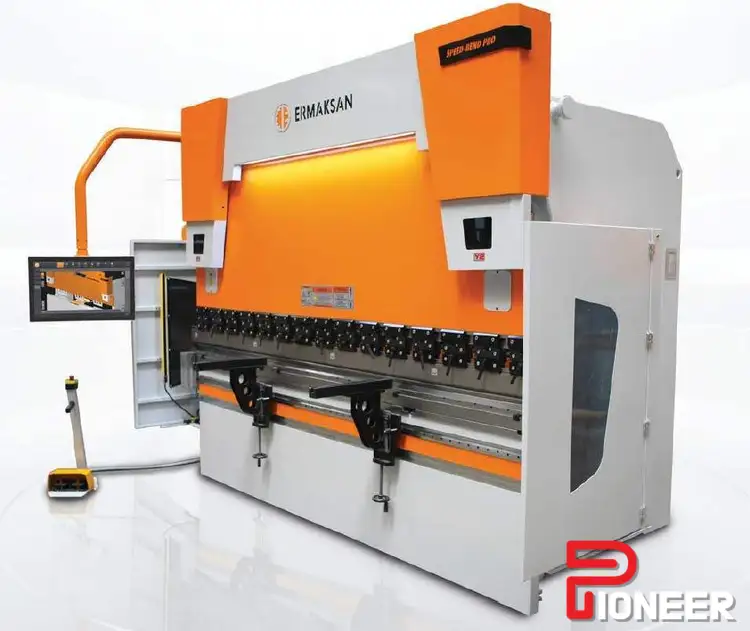

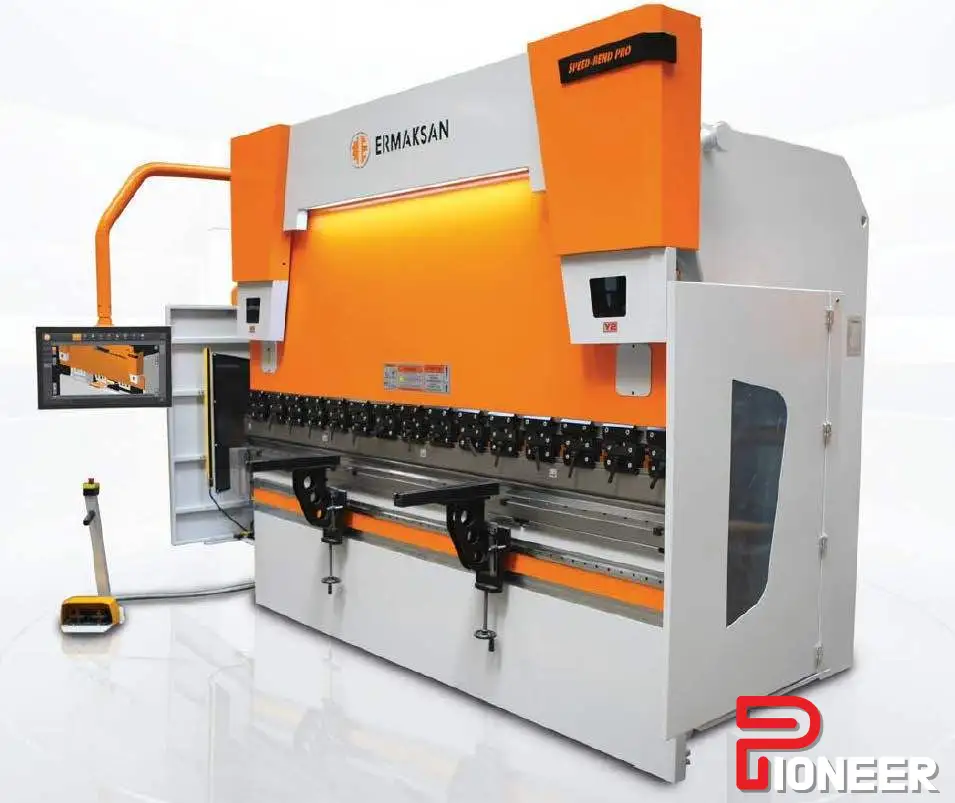

SPEED-BEND PRO 10ft x 190 US Tons with Rock 17 Controller
Press Brakes
New ERMAKSAN SPEED-BEND PRO, 190T press brake, 10ft bend length, Rock 17 controller, 6-axis backgauge, high stroke & throat depth, Siemens electrics, safety features.
| Tonnage | 190 T |
| Between Housings | 102.36' |
| Stroke | 10.83" |
| Control | CNC (Rock 17) |
| Dimensions | 197.83 x 84.65 x 105.51 |
| Weight | 20025 |
BENDING LENGTH ( A ) 122.05 "
MAX. POWER 192.5 US Tons
MAX.BENDING CAPACITY (59738 psi) 0.24 " V= 1.97 "
MAX.BENDING CAPACITY (73974 psi) 0.24 " V= 1.97 "
MAX.BENDING CAPACITY (81087 psi) 0.20 " V= 1.97 "
MAX.BENDING CAPACITY (89622 psi) 0.20 " V= 1.97 "
MAX.BENDING CAPACITY (99580 psi) 0.20 " V= 1.97 "
AXIS NUMBER OF MACHINE Y1,Y2,X,R,Z1,Z2 -
FREE DOWN SPEED 7.09 in/s
BENDING SPEED 0.47 in/s
RETURN BACK SPEED 7.48 in/s
STROKE ( C ) ( Y1 , Y2 ) 10.83 "
BACK GAUGE STROKE ( X AXIS ) 31.50 "
BACK GAUGE STROKE ( R AXIS ) 9.84 "
DISTANCE BETWEEN HOUSING ( B ) 102.36 -
CROWNING MOTORIZED -
THROAT DEPTH ( E ) 16.14 "
TABLE HEIGHT ( F ) 35.43 "
TABLE WIDTH ( G ) 3.54 "
DAYLIGHT ( D ) 21.65 "
PLANT VOLTAGE 380 V
IP 54 -
MAIN MOTOR 20 HP
BACK GAUGE MOTORS (X , R,Z1,Z2) 2x2.4+2x1.27 Nm
PLANT TEMPERATURE 0-50 ºC
MAX. NOISE 70 dB
OIL CAPACITY 79.26 US Gallons
MAX. PRESSURE 3981.6 psi
MACHINE LENGTH ( L ) 197.83 "
MACHINE WIDTH ( W ) 84.65 "
MACHINE HEIGHT ( H ) 105.51 "
WEIGHT 20025.544 lbs
10/24/2022
Rock 17, TOUCH SCREEN CNC CONTROLLER 1
TOTAL OF 6 AXIS (Y1, Y2, X, R,Z1, Z2) X:800 MM, R=250MM 1
ERMAKSAN FOUR AXIS BACKGAUGE (X, R, Z1, Z2) 1
AMERICAN PROMECAM QUICK RELEASE 1
ROLLERI TOP TOOL ROLLERI - 0813/011/11 1
M460-R 4 V BOTTOM TOOL 1
275 (10,8”) MM HIGH STROKE 1
410 (16”) MM THROAT DEPTH 1
230 or 460 VOLTAGE, 3PH, 60HZ 1
BACK SIDE SAFETY – LIGHT BARRIER 1
SIDE GUARDS WITH SWITCH 1
DOUBLE FOOT PEDAL CONTROLLER 1
HOERBIGER HYDRAULIC SYSTEM 1
SIEMENS ELECTRIC SYSTEM 1
SLIDING FRONT SUPPORT ARMS 2
STANDARD NARROW TABLE 1
RAL 7035, RAL 2008 COLORS 1
ENGLISH LABEL 1
ENGLISH MANUAL 1
