SPEED-BEND PRO 12' x 242 US Tons with Rock 17 Controller
Press Brakes

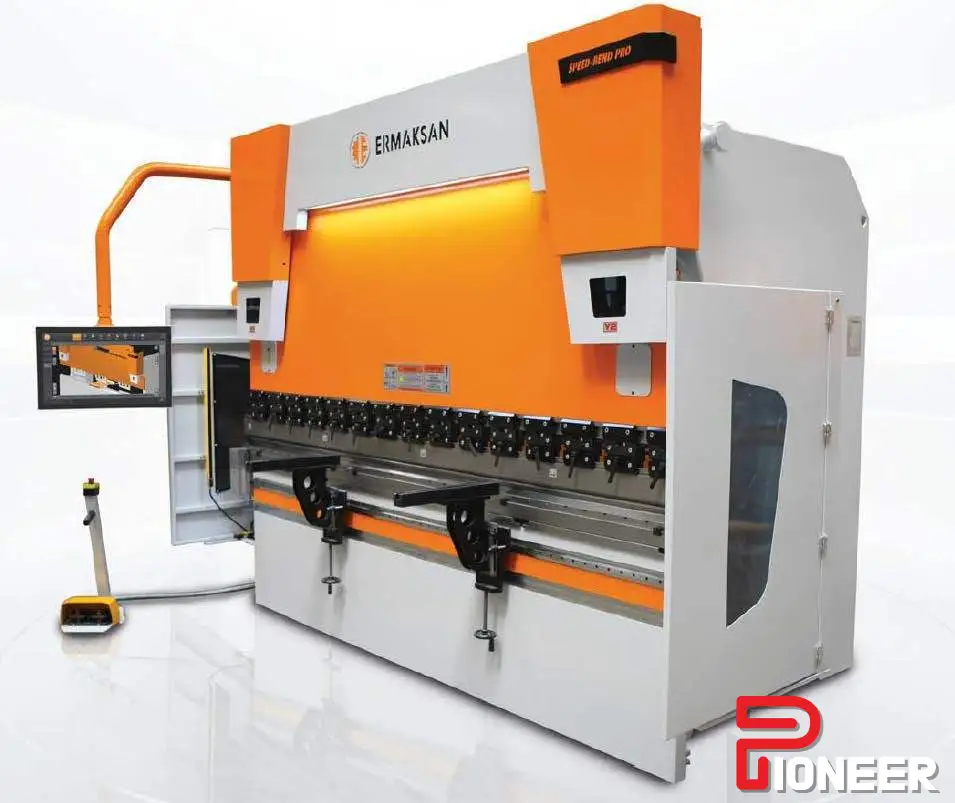

New ERMAKSAN SPEED-BEND PRO 12' Press Brake, 242T capacity, 6-axis control, with advanced Rock 17 touch screen CNC and Hoerbiger hydraulics. Unrivaled precision for metal forming.
| Tonnage | 242 T |
| Stroke | 10.8" |
| # Axis | 6 |
| Control | CNC (Rock 17) |
| Dimensions | 200.8 x 8.7 x 114.2 |
| Weight | 28224 |
BENDING LENGTH ( A ) 148 "
MAX. POWER 242 US Tons
MAX.BENDING CAPACITY (59738psi) 0.31 "
AXIS NUMBER OF MACHINE Y1,Y2,X,R,Z1,Z2 -
FREE DOWN SPEED 7.1 in/s
BENDING SPEED 0.4 in/s
RETURN BACK SPEED 7.3 in/s
STROKE ( C ) ( Y1 , Y2 )10.8 "
BACK GAUGE STROKE ( X AXIS ) 31.5 "
BACK GAUGE STROKE ( R AXIS ) 9.8 "
DISTANCE BETWEEN HOUSING ( B ) 128 "
CROWNING MOTORIZED -
THROAT DEPTH ( E ) 16.1 "
TABLE HEIGHT ( F ) 35.4 "
TABLE WIDTH ( G ) 6.3 "
DAYLIGHT ( D ) 21.7 "
PLANT VOLTAGE 230 or 460 V
IP 54 -
MAIN MOTOR 25 HP
BACK GUAGE MOTORS (X,R,Z1,Z2) 2x2,4+2x1,27 Nm
PLANT TEMPERATURE 0-50 ºC
MAX NOISE 70 dB
OIL CAPACITY 79.3 US GALONS
MAX PRESSURE 4205 psi
MACHINE LENGTH ( L ) 200.8 "
MACHINE WIDTH ( W ) 8.7 "
MACHINE HEIGHT ( H ) 114.2 "
WEIGHT 28224 LBS
Rock 17, TOUCH SCREEN CNC CONTROLLER 1
TOTAL OF 6 AXIS (Y1, Y2, X, R,Z1, Z2) X:800 MM, R=250MM 1
ERMAKSAN FOUR AXIS BACKGAUGE (X, R, Z1, Z2) 1
AMERICAN PROMECAM QUICK RELEASE 1
ROLLERI TOP TOOL ROLLERI - 0813/011/11 1
M460-R 4 V BOTTOM TOOL 1
275 (10,8”) MM HIGH STROKE 1
410 (16”) MM THROAT DEPTH 1
230 or 460 VOLTAGE, 3PH, 60HZ 1
BACK SIDE SAFETY – LIGHT BARRIER 1
SIDE GUARDS WITH SWITCH 1
DOUBLE FOOT PEDAL CONTROLLER 1
HOERBIGER HYDRAULIC SYSTEM 1
SIEMENS ELECTRIC SYSTEM 1
SLIDING FRONT SUPPORT ARMS 2
STANDARD NARROW TABLE 1
RAL 7035, RAL 2008 COLORS 1
ENGLISH LABEL 1
ENGLISH MANUAL 1
