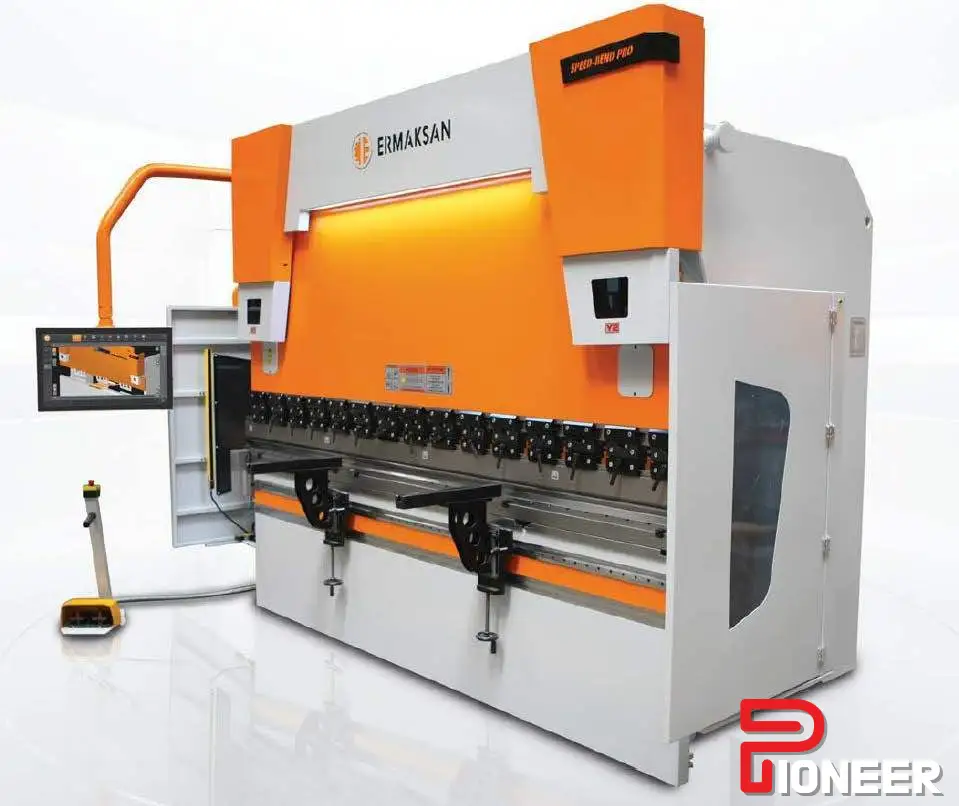

ERMAKSAN Speed Bend Pro 4270x 220 (14X242) With Rock 17 Controller
Press Brakes
Brand new ERMAKSAN Speed Bend Pro 4270x 220 press brake. 242T capacity, 6-axis precision control, featuring Rock 17 controller. Latest model with advanced features for efficient metal bending.
| Tonnage | 242 T |
| Stroke | 10.83" |
| # Axis | 6 |
| Control | CNC (Rock 17) |
| Dimensions | 29X89X118 |
| Weight | 32881 |
BENDING LENGTH ( A ) 168.11 "
MAX. POWER 242 US Tons
MAX.BENDING CAPACITY (59738 psi) 0.31 " V= 3.1 "
MAX.BENDING CAPACITY (73974 psi) 0.28 " V= 3.1 "
MAX.BENDING CAPACITY (81087 psi) 0.28 " V= 3.1 "
MAX.BENDING CAPACITY (89622 psi) 0.24 " V= 3.1 "
MAX.BENDING CAPACITY (99580 psi) 0.24 " V= 3.1 "
AXIS NUMBER OF MACHINE Y1,Y2,X,R,Z1,Z2 -
FREE DOWN SPEED 7.09 in/s
BENDING SPEED 0.39 in/s
RETURN BACK SPEED 7.28 in/s
STROKE ( C ) ( Y1 , Y2 ) 10.83 "
BACK GAUGE STROKE ( X AXIS ) 31.50 "
BACK GAUGE STROKE ( R AXIS ) 9.84 "
DISTANCE BETWEEN HOUSING ( B ) 148.82 -
CROWNING MOTORIZED -
THROAT DEPTH ( E ) 16.14 "
TABLE HEIGHT ( F ) 35.43 "
TABLE WIDTH ( G ) 6.30 "
DAYLIGHT ( D ) 21.65 "
PLANT VOLTAGE 230 or 460 V
IP 54 -
MAIN MOTOR 25 HP
BACK GAUGE MOTORS (X , R,Z1,Z2) 2x2.4+2x1.27 Nm
PLANT TEMPERATURE 0-50 ºC
MAX. NOISE 70 dB
OIL CAPACITY 79 US Gallons
MAX. PRESSURE 4124 psi
MACHINE LENGTH ( L ) 209 "
MACHINE WIDTH ( W ) 89 "
MACHINE HEIGHT ( H ) 118 "
WEIGHT 32881 lbs
Rock 17, TOUCH SCREEN CNC CONTROLLER 1
TOTAL OF 6 AXIS (Y1, Y2, X, R,Z1, Z2) X:800 MM, R=250MM 1
ERMAKSAN FOUR AXIS BACKGAUGE (X, R, Z1, Z2) 1
AMERICAN PROMECAM QUICK RELEASE 1
ROLLERI TOP TOOL ROLLERI - 0813/011/11 1
M460-R 4 V BOTTOM TOOL 1
275 (10,8”) MM HIGH STROKE 1
410 (16”) MM THROAT DEPTH 1
460 VOLTAGE, 3PH, 60HZ 1
BACK SIDE SAFETY – LIGHT BARRIER 1
SIDE GUARDS WITH SWITCH 1
DOUBLE FOOT PEDAL CONTROLLER 1
HOERBIGER HYDRAULIC SYSTEM 1
SIEMENS ELECTRIC SYSTEM 1
SLIDING FRONT SUPPORT ARMS 2
STANDARD NARROW TABLE 1
RAL 7035, RAL 2008 COLORS 1
ENGLISH LABEL 1
ENGLISH MANUAL 1
