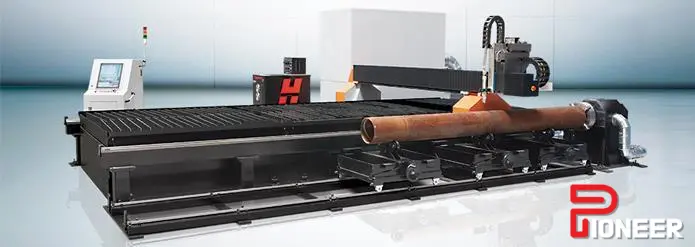

EPL 2060 (6.5’x20’) XPR300 VWI Tube Cutting Ø1.96 – Ø15.74 with Oxy Cut Head

Cutting Width A 80 inch
Total Width B 234 inch
Total Height C 98 inch
Inter GAP D 18 inch
Torch Distance E 0-16 inch
Cutting Length 240 inch
Table Height 30 inch
Speed 591 inch/min
Machine Axis X,Y,Z1,Z2,D
Manuel Bevel Head (Plasma, T=45) Inc.
Positioning Accuracy 0,00039 DIN 28206 inch
Repetition Accuracy 0,0019 DIN 28206 inch
CNC Controller Hypertherm EdgeConnect TC
CAD/CAM Software Hypertherm Pronest LT+RotaryTubePro
Plasa Cutting Unit HyperthermXPR300
Torch Height Control Ermak THC
Torch Height Control (OXY.) Iht M4000 Cap
Cutting Capacity Mild Steel (OXY.) 0.39-5.9 inch
Mild Steel (Plasma Max Cutting Capacity) 0.04-3.14 inch
Mild Steel (Plasa Production Pierce) 0.04-1.96 inch
Stainless Steel (Plasma Max Cutting Capacity) 0.04-1.96 inch
Stainless Steel (Plasa Production Pierce)0.04-1.49 inch
Aluminum (Plasma Max Cutting Capacity)0.04-1.96 inch
Aluminum (Plasa Production Pierce)0.04-1.25 inch
Cut Angle Class ISO 9013 2-3
Pipe Cutting Diameter Min. Max. 1.96-15.74 inch
Square (SHS) Min. Max. (1.96 x 1.96)-(15.74 x 15.74) inch
Rectangular (RHS) Min. Max. (2.75 x 1.96) - (5.9 x 3.93) inch
Pipe Cutting Max Length 236.2 inch
Pipe Cutting Max Thickness (Mild Steel) 0.8 inch
Gas Console (Plasma) VWI (AUTO)
Gas Console (Oxygen) Manual
Energy 460V,60Hz, 6bar air
Weight 26049 pounds
Dust Collector Weight 2649 pounds
