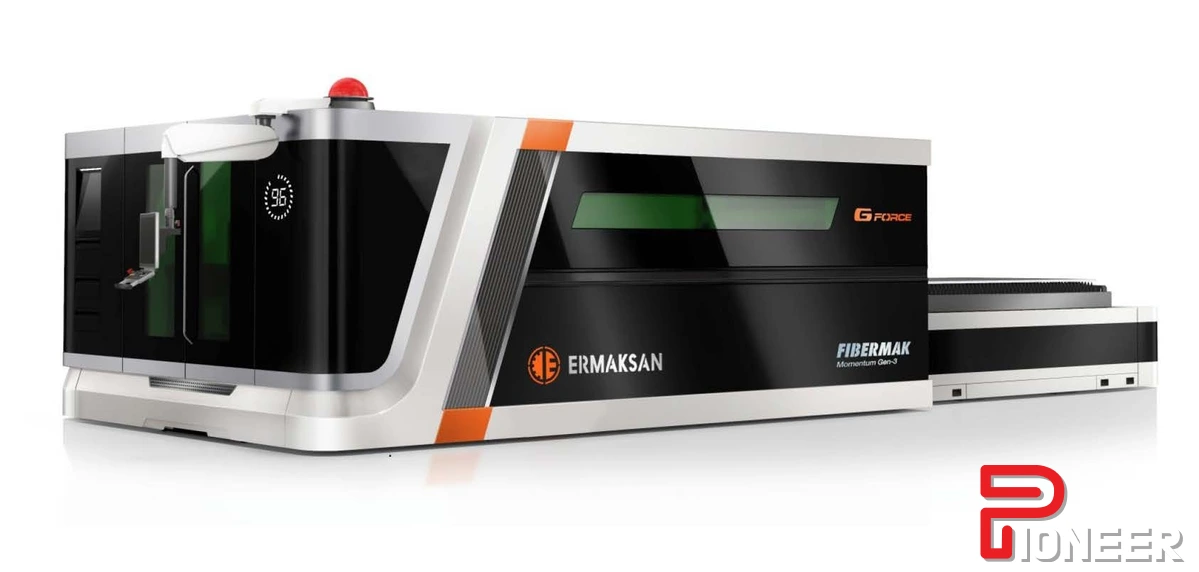

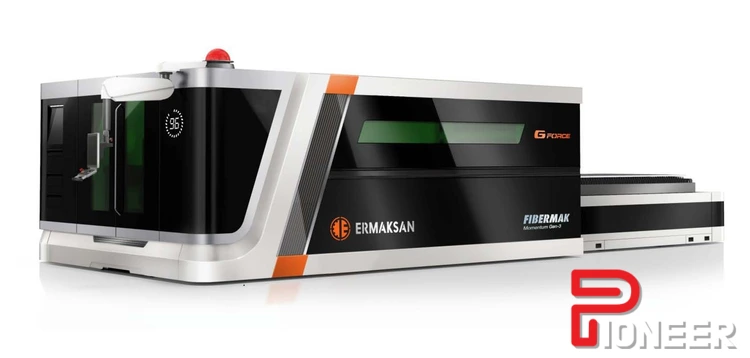

ERMAKSAN G Force 6' x 12' 15kW

RESONATOR 15000 Watt
POWER RANGE %10 - %105
LASER BEAM QUALITY @ COLLIMATOR 3,5 mm
POWER STABILITY ±2
PULSE FREQUENCY RANGE 0 - 5
LASER WAVE LENGTH 1070 ±5
OUTPUT FIBER CORE DIAMETER 100
EXCITATION Laser diod
COOLING WATER FLOW RATE 39.6 Gallon/Min
CUTTING CAPACITY (Maximum) - -
MILD STEEL (S235JR, S355MC) 1 3/16" (suitable sheet for laser cutting)
1" standart
STAINLESS STEEL (AISI 304) 1" (suitable sheet for laser cutting )
1" standart
ALUMINUM (AlMg3) 1 3/16" (suitable sheet for laser cutting)
1" standart
BRASS (CuZn37) 3/8"
COPPER (Cu-ETP) 3/8"
MAXIMUM WORKSHEET DIMENSIONS 157 x 79
MAXIMUM BURDEN CAPACITY 8300 Pounds
MACHINE AXES 4-Axes [X, Y, Z, U ]
AXIAL MOVEMENTS
X, U AXES Servo Motorized Table 159.4 inch
Y AXIS Servo Motorized Bridge 81 inch
Z AXIS Servo Motorized Cutting Head 5.9 inch
ACCELERATIONS
X, U, Y, Z AXES Servo Motorized 2.5 G
MAXIMUM AXES VELOCITIES 5568 (simultaneous)
( X, Y single axis velocity 3937Inch/min) IPM
POSITIONING ACCURACY ± 0,001 inch
REPETITION ACCURACY ± 0,0006 inch
SHUTTLE TABLE (Automatic Loading - Unloading Unit) 2 ( 45 sec ) palette
ASSIST GAS
MILD STEEL Oxygen (0,5-6 Bar)
STAINLESS STEEL Nitrojen ( 0,5-25 Bar)
ALUMINUM Dry Air or Nitrogen ( 0,5-25 Bar)
CUTTING HEAD Precitec Procutter 2.0
CNC BECKHOFF CP3921
CAD/CAM SOFTWARE Metalix
NETWORK CONNECTION Ethernet
OPERATION VIA PANEL 21,5-inch display 1920 x 1080, alphanumeric keyboard, PLC keys on the
sides, touch screen keyboard
AVARAGE POWER CONSUMPTION 79 HP
MACHINE DIMENSIONS ( L x W x H ) 489 x 232 x 91
MACHINE WEIGHT 40783

Technical features (Specs) are attached as PDF.
