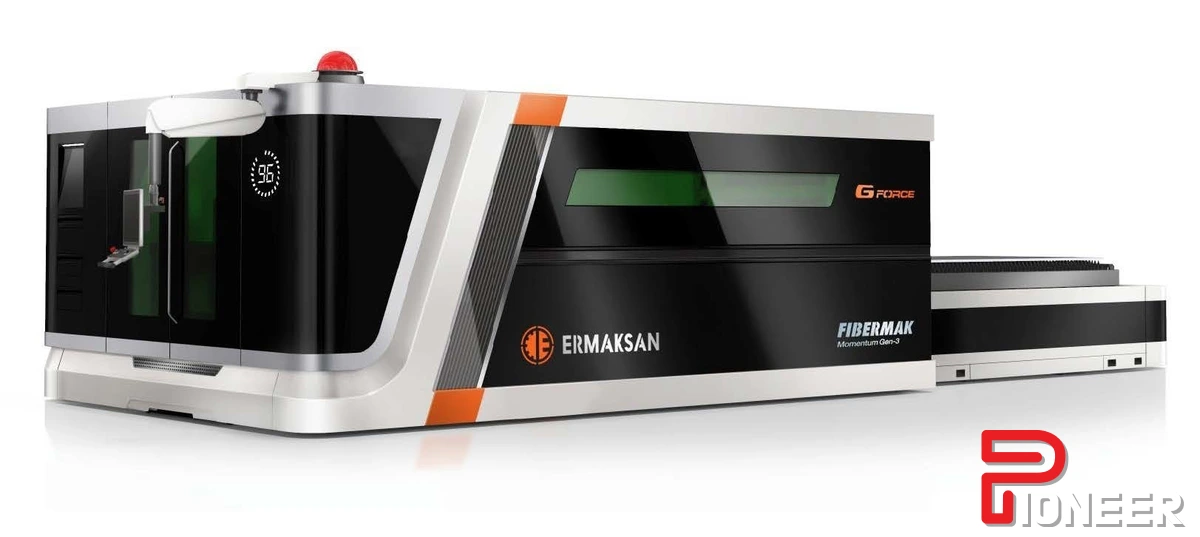

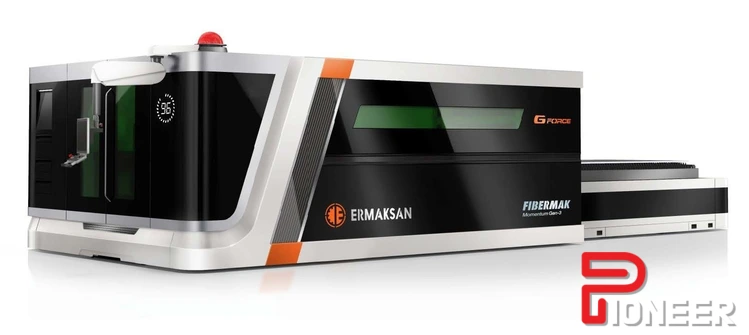

ERMAKSAN G Force 6' x 12' 12kW

RESONATOR YLS 12000 Watt
POWER RANGE 10-105 %
LASER BEAM QUALITY @ COLLIMATOR 2-4 mm mrad
POWER STABILITY 1-2 %
PULSE FREQUENCY RANGE 5 kHz
LASER WAVE LENGTH 1075 ± 5 nm
OUTPUT FIBER CORE DIAMETER 100 μm
EXCITATION Laser diod
COOLING WATER FLOW RATE 18.5 Gallon/Min
CUTTING CAPACITY (Maximum) - -
MILD STEEL (S235JR, S355MC)"1 3/16"" (suitable sheet for laser cutting)
1"" standart"
STAINLESS STEEL (AISI 304)"1"" (suitable sheet for laser cutting )
51/64"" standart"
ALUMINUM (AlMg3)"1 3/16"" (suitable sheet for laser cutting)
1"" standart"
BRASS (CuZn37) 5/16"
COPPER (Cu-ETP) 5/16"
MAXIMUM WORKSHEET DIMENSIONS 157 X 79 inch
MAXIMUM BURDEN CAPACITY 8201 pounds
MACHINE AXES - 4-Axes [X, Y, Z, U ]
AXIAL MOVEMENTS
X, U AXES Servo Motorized Table 159.4 inch
Y AXIS Servo Motorized Bridge 81 inch
Z AXIS Servo Motorized Cutting Head 5.9 inch
ACCELERATIONS
X, U, Y, Z AXES Servo Motorized 2.5 G
MAXIMUM AXES VELOCITIES 5551 (simultaneous) (X, Y single axis velocity 3937Inch/min) IPM
POSITIONING ACCURACY ± 0,001 inch
REPETITION ACCURACY ± 0,0006 inch
SHUTTLE TABLE (Automatic Loading - Unloading Unit) palette 2 ( 45 sec )
ASSIST GAS - -
MILD STEEL Oxygen (0,5-6 Bar)
STAINLESS STEEL Nitrojen ( 0,5-25 Bar)
ALUMINUM Dry Air or Nitrogen ( 0,5-25 Bar)
CUTTING HEAD Procutter Zoom 2.0
CNC BECKHOFF CP3921
CAD/CAM SOFTWARE Metalix
NETWORK CONNECTION Ethernet
OPERATION VIA PANEL "21,5-inch display 1920 x 1080, alphanumeric keyboard,
PLC keys on the sides, touch screen keyboard"
AVARAGE POWER CONSUMPTION 67 HP
MACHINE DIMENSIONS ( L x W x H ) 489 X 232 X 91 inch
MACHINE WEIGHT 41886 pounds
