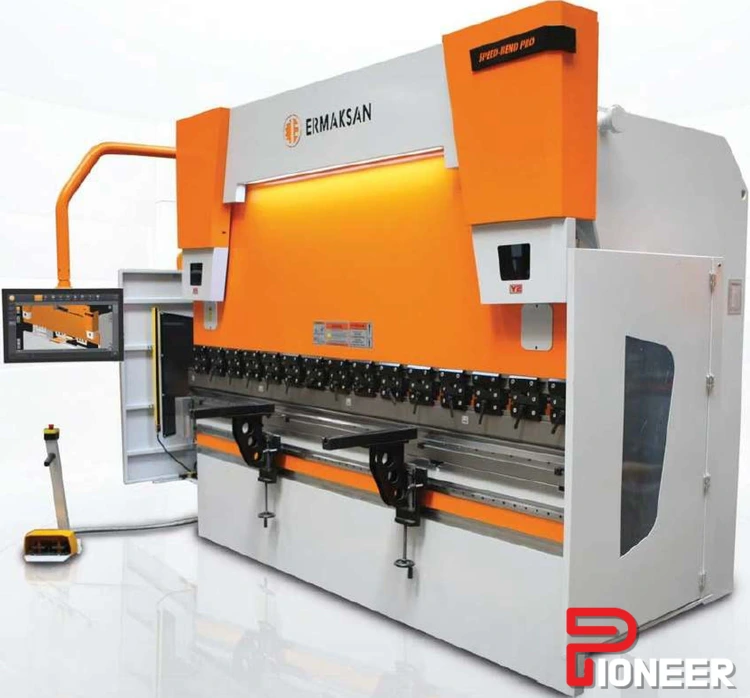

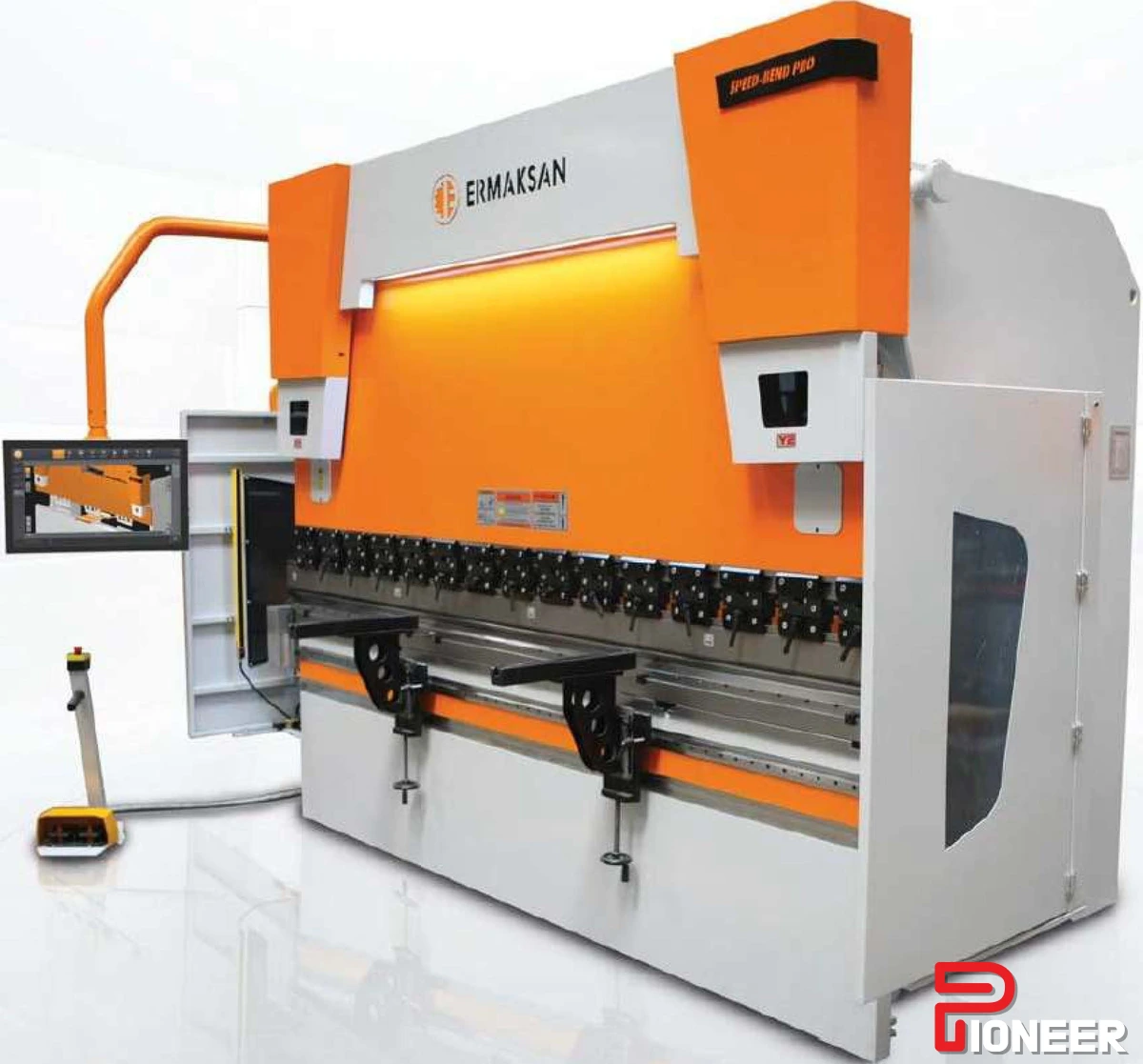

ERMAKSAN Speed-Bend 12' x 192Ton w/ Rock 17 Controller
Press Brakes
New ERMAKSAN Speedbend Press Brake: 192T, 6-axis, advanced Rock Controller, 148" length, for precision bending. Robust build, modern design, powerful yet efficient operation.
| Tonnage | 192 T |
| Type | HYD |
| Overall Length | 193" |
| Between Housings | 128" |
| Stroke | 10.8" |
| # Axis | 6 |
| Control | CNC (Rock 17) |
| Dimensions | 193 x 84.7 x 110.24 |
| Weight | 24224 |
BENDING LENGTH ( A ) 1.48"
MAX. BENDING CAPACITY (59738psi) 0.24"
AXIS NUMBER OF MACHINE Y1, Y2, xz, R, Z1, Z2
FREE DOWN SPEED 7.1 in/s
BENDING SPEED .4 in/s
RETURN BACK SPEED 7.3 in/s
STROKE( C) ( Y1, Y2 ) 10.8"
BACK GAUGE STROKE ( X AXIS) 31.5"
BACK GAUGE STROKE ( R AXIS) 9.8"
DISTANCE BETWEEN HOUSING ( B) 128"
CROWNING MOTORIZED
THROAT DEPTH ( E) 16.1"
TABLE HEIGHT ( F) 35.4"
TABLE WIDTH ( G) 6.3"
DAYLIGHT ( D) 21.7"
PLANT VOLTAGE 230 OR 460 V
IP 54
MAIN MOTOR 20 HP
BACK GAUGE MOTORS (X ,R,Z1,Z2) 2X2,4+2X1,27 Nm
PLANT TEMPERATURE 0-50
MAX. NOISE 70 dB
OIL CAPACITY 79.3 US Gallons
MAX. PRESSURE 4205 psi
MACHINE LENGTH ( L ) 193
MACHINE WIDTH ( W) 84.7
MACHINE HEIGHT ( H) 110.24
WEIGHT 24224 lbs
Rock 17, TOUCH SCREEN CNC CONTROLLER TOTAL OF 6
AXIS (Y1, Y2, X, R,Z1, Z2) X:800 MM, R=250MM ERMAKSAN
FOUR AXIS BACKGAUGE (X, R, Z1, Z2) AMERICAN
PROMECAM QUICK RELEASE
ROLLERI TOP TOOL ROLLERI - 0813/011/11
M460-R 4 V BOTTOM TOOL
275 (10.8") MM HIGH STROKE
410 (16") MM THROAT DEPTH
230 or 460V, 3PH, 60HZ
BACK SIDE SAFETY - LIGHT BARRIER
SIDE GUARDS WITH SWITCH
DOUBLE FOOT PEDAL CONTROLLER
HOERBIGER HYDRAULIC SYSTEM
SIEMENS ELECTRIC SYSTEM
SLIDING FRONT SUPPORT ARMS
STANDARD TABLE
RAL 7035, RAL 2008 COLORS
ENGLISH LABEL
ENGLISH MANUAL
