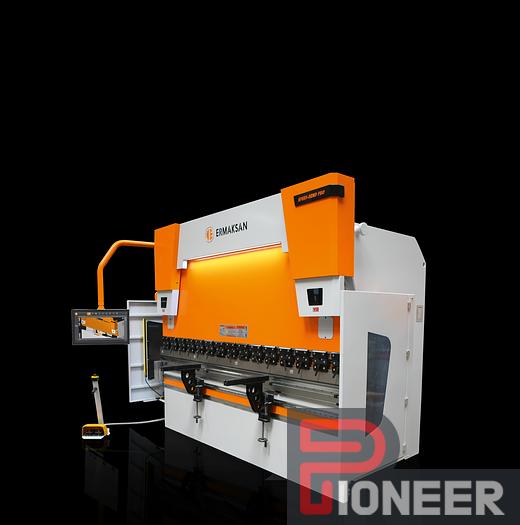

2021 ERMAKSAN SPEED BEND PRO 3100X135 TON PRESS BRAKE

2021 ERMAKSAN SPEED BEND PRO 3100X135 TON PRESS BRAKE
Description
SPEED-BEND Synchronized Hydraulic Press Brake
- Mono block, welded steel frame rigid to deflection and high tensile with ST44 A1 material.
- 6 axes (Y1, Y2, X, R, Z1, Z2)
- Back gauge system with X, R, Z1, Z2 axis driven by AC servo with colored graphics.
- HOERBIGER servo hydraulic system.
- CNC controlled motorized anti-deflection system.
- Hardened and ground standard sectioned top and 4V-Die bottom tools section).
- Easy to clamp tool holding system with upper and lower tools.
- Standard graphic controllers: Delem DA 66T 2D Controller
- Electrical panel with cooling system designed to meet CE standards and composed of automation and electrical equipment with SIEMENS branding.
- Ergonomic user-friendly, pendant control panel.
- Backlight safety guards (category-4)
- Front side covers with safety switches.
- Synchronization of Y1+Y2 axis provided by linear encoders with 0,01 mm tolerances.
- Foot pedal suitable to CE regulation.
- Sliding front support arms with T slot and mm/inch rulers.
Specifications
Manufacturer | ERMAKSAN |
Model | SPEED BEND PRO 3100X135 TON PRESS BRAKE |
Year | 2021 |
Condition | New |
Serial Number | 30164- ERH |
Controller | Delem DA-66T 2D Graphical Controller |
PLANT VOLTAGE | 230/460V 60HZ 3 PH ELECTRIC DUAL VOLTAGE |
Light curtains | Laser Safe |
Bending length | 122" |
Bending power | 148 Ton |
Distance Between Columns | 102.36" |
Y Rapid Speed | 7.09"/SEC |
Crowning | CNC |
Travel In X Axis | 31.50" |
Travel In R axis | 9.84 INC |
Back Guage Finger Blocks | 2 |
FREE DOWN SPEED | 7.87 IN/S |
THROAT DEPTH ( E ) | 16.14" |
TABLE HEIGHT ( F ) | 35.43 |
TABLE WIDTH ( G ) | 3.54" |
DAYLIGHT ( D ) | 21.65" |
MACHINE LENGTH ( L ) | 167" |
MACHINE WIDTH ( W ) | 81" |
MACHINE HEIGHT ( H ) | 110" |
Weight | 18,042 ILBS |
Additional Features
Includes, Installation, Training, 1-year warranty
