ERMAKSAN FIBERMAK RAPTOR 5’ x 10’ 2kW

ERMAKSAN FIBERMAK RAPTOR 5’ x 10’ 2kW

orCall 832-509-1089

Description

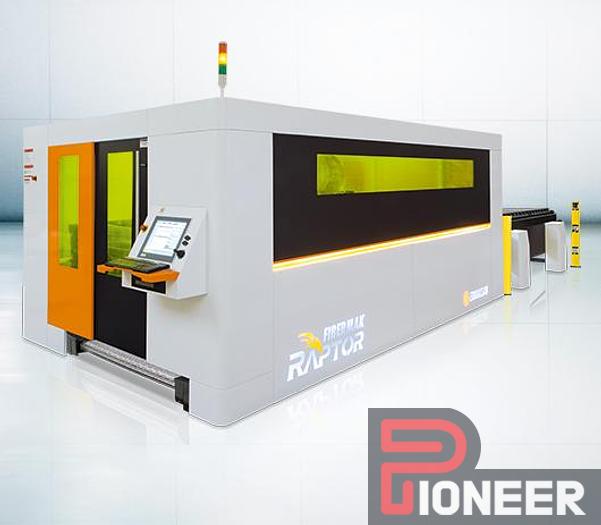

RAPTOR Fiber Laser Cutting machine is produced to be an alternative solution without any concession from cutting quality with its less space requirements, modular and ergonomic design compared to standard Fibermak. The raptor offers top-of-the-line cut quality, at a lower cost.


General Features:

  • Modular and ergonomic design
  • Designed as 0.5 G acceleration and 50 m/min. speed
  • Extraction Unit
  • Conveyor
  • Loading Unit
  • 15” touch screen controller
  • Servo motor technology
  • High precision cutting head
  • Standard 500 W and 1 kW laser unit

CUTTING HEAD FEATURES

  • Manual adjustable focal lens
  • Precise height control
  • Protection Glass
  • Piercing air system



Specifications

ManufacturerERMAKSAN
ModelFIBERMAK RAPTOR 5’ x 10’ 2kW
ConditionNew
Table Size5'x10'
Wattage2,000 Watt IPG
Cuttiing CapacityMild steel 3/4"
Cutting CapacityStainless Steel 3/8"
Cutting CapacityAluminum 5/16"
Cutting CapacityBrass 3/16"
Cutting CapacityCopper 3/16"
POSITIONING ACCURACY± 0,004 Inch
REPETITION ACCURACY± 0,002 Inch
CUTTING HEADPrecitec Procutter
CAD/CAM SOFTWARELANTEK EXPERT CUT
