IPG LightWeld 1500 XC 10 Meter
IPG LightWeld 1500 XC 10 Meter
Description

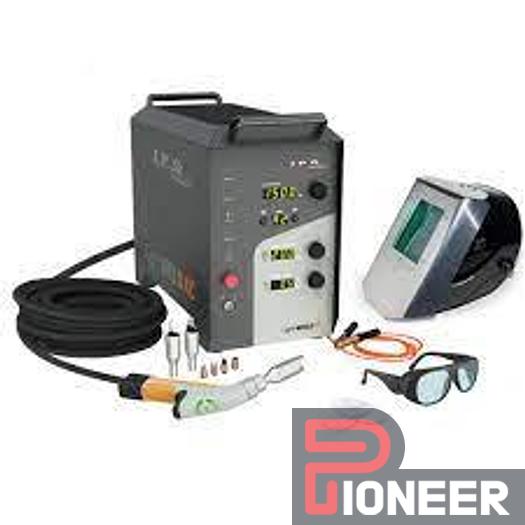

LightWELD XC Handheld Laser Welding and Cleaning System
- All the welding capabilities of LightWELD 1500
- Quickly and easily converts between laser welding and laser cleaning functions with a simple switch of the nozzle.
- Factory welding and cleaning presets reduce the learning curve
- Pre-weld cleaning capability removes oxides, rusts, oils, and greases, ensuring a high-quality weld
- Post-weld cleaning capability polishes weld, removing any soot or debris
- Eliminates the need for harmful chemicals or abrasives
- Minimal material prep and post-finishing means maximum productivity
Specifications
| Manufacturer | IPG |
| Model | LightWeld 1500 XC 10 Meter |
| Condition | New |
| Stock Number | NM-LW1500 |
| Laser Power: | 1500W |
| Cable length | 10 meters |
| Power: | 30A 2P3W IP44 6H |
| High frequency pulsed laser mode: | 2500 W pk power |
| Mode Storage Capacity: | 74 |
| Wobble Length: | Up to 5 mm |
| Wobble Frequency: | Up to 300 Hz |
| Dimensions LxWxH: | 25.2” x 12.4” x 21” |
| Weight: | 118 lbs |
| Power | AC Power: 220V, 1 Ph, 50/60 Hz, <20 Amp. |
Additional Features
WHAT'S INCLUDED:
5 m (16 ft) IPG Laser Welding Gun
5 m (16 ft) Workpiece Clamp
(4) Welding Nozzle Tips
(5) Cover Slides
Welding helmet with IR shield
Laser safety glasses OD 6+
3 m (10 ft) CAT 6 Ethernet Cable
Getting Started Guide
High-frequency pulsed laser mode, 2500 W pk power
Wide (15 mm) scan field for high-speed coverage
Weld head nozzle cleaning attachment with 3 tips
Pre-set cleaning mode software
Rear Panel Connections
AC Power: 220V, 1 Ph, 50/60 Hz, <20 Amp.
Welding Head I/O:
Workpiece Clamp Circuit:
Process gas input ½” hose - Customer responsibility
Process gas output. (Included with welding head umbilical)
Safety Interlock and I/O. - Customer responsibility
RJ-45 Ethernet connection- customer configuration and status port
