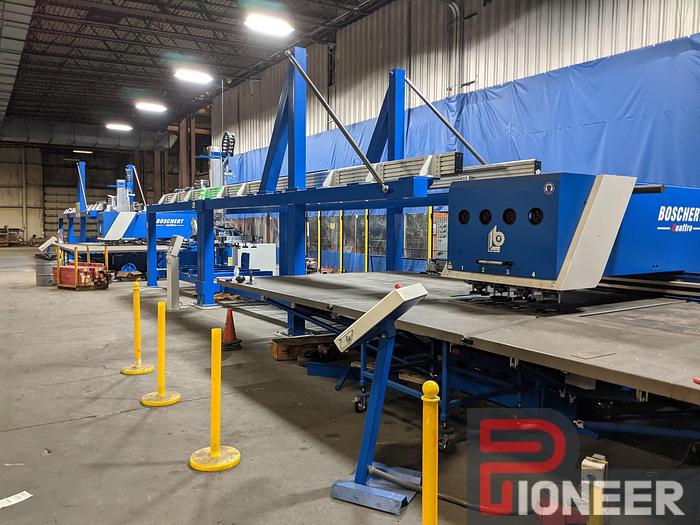

2021 Boschert BOSCHERT QUTRO 1500

2021 Boschert BOSCHERT QUTRO 1500

orCall 832-509-1089

Description

SPECIFICATIONS:

Head No. 1: Standard 36-ton configuration

Head No. 2: Standard 36-ton configuration

Head No. 3: Standard 36-ton configuration

Head No. 4: Standard 36-ton configuration

(TRI shown)

Working range without repositioning ............................................................................. 60” x 120” Maximum punching force ................................................................................................. 36 Tons Type of tooling used ..........................................................................................................Trumpf Maximum punch diameter....................................................................... 4.1” or any shape within Maximum material thickness – standard clamps (Option: 0.500”) ...................................... 0.250” Maximum weight of sheet in clamps ................................................................................ 450 lbs. Maximum stroke length (Programmable) .........................................................................0 - 3.54” Maximum strokes per minute ................................................................................. 250 / 800 spm Positioning accuracy......................................................................................................+/- 0.002” Positioning repeatability..................................................................................................+/-0.001” Positioning speed (adjustable)

X – Axis Maximum ..................................................................................................... 2,350 ipm

Y – Axis Maximum ..................................................................................................... 1,100 ipm Tool change time

Automatic Revotool multi-tool .......................................................................................2 seconds Manual........................................................................................................................15 seconds

Specifications

ManufacturerBoschert
ModelBOSCHERT QUTRO 1500
Year2021
ConditionNew
