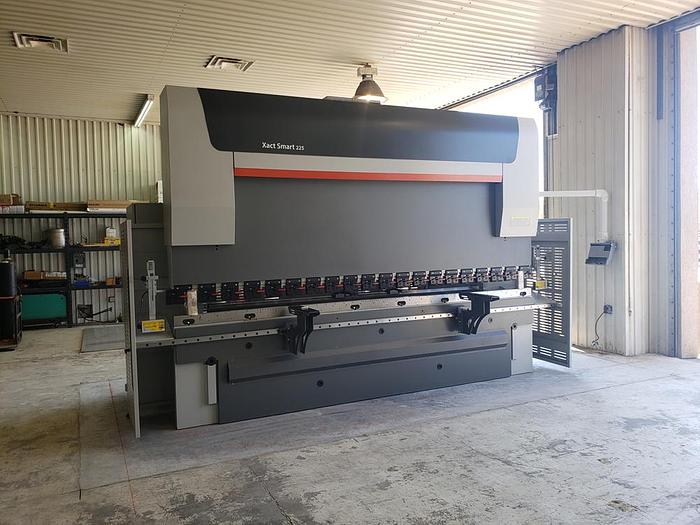

Bystronic Xact Smart 225/4100

Bystronic Xact Smart 225/4100

Contact us for price

orCall 832-509-1089

Description

Comes with a tooling package of new tooling. In great shape. Xact Smart 225/4100 1.2 ByVision Bending control with 22 Inch Full HD display and touch technology 1.3 OPC Interface Bending 1.4 DNC controlled hydraulic crowning 1.5 Machine frame 1.6 Safety System Fast Bend S 1.7 2 manual adjustable front supports, length 400mm 1.8 Table T5/90 1.9 Upper tool clamping type “Euro-B“ mechanical (fast clamping plates) 1.10 2-axis back gauge system 1.11 Electrically interlocked side fences 1.12 Rear protection devices / sliding door incl. interlocking switch 1.13 Linear guide on lower beam 1.14 Control console with foot switch 1.15 Ambient air temperature 7°C up to 35°C

Specifications

ManufacturerBystronic
ModelXact Smart 225/4100
Year2018
ConditionUsed
Tonnage248 Tons
Bending length161.4 in
Standard stroke [S] 7.9 in
Open height [D]18.4 in
Distance between side frames134.7 in
Throat [T]15.8 in
Table Width 2.37 in
Max. back gauge range X-axis 36.5 in
X-axis travel 23.7 in
X-axis speed945 in/min
X-axis position accuracy0.0019 in
R-axis travel6 in
R-axis speed237 in/min
