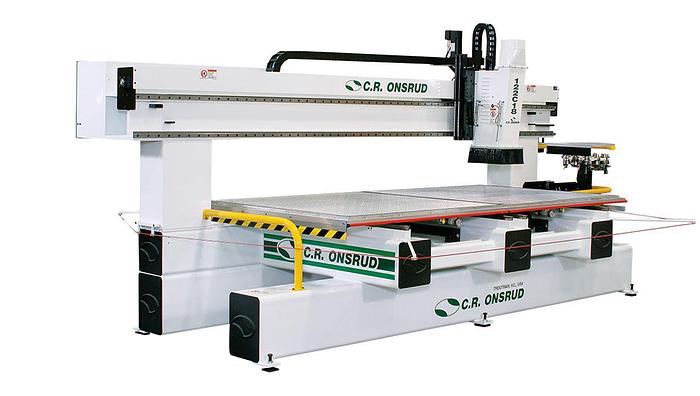

Onsrud E Series

Onsrud E Series

Contact us for price

orCall 832-509-1089

Description

The E Series CNC machining cener takes everything we’ve learned from the design of our C Series CNC  to the next level in performance and accuracy. This twin table CNC machine features beefy rail spacing for greater accuracy and leverage over the part for more demanding applications. Like its smaller cousin, the C Series, having the fixed bridge positioned across the width of the twin table configuration reduces the appreciable machine footprint by half (that of a typical "fixed gantry" machine). This design allows the ultimate in operator flexibility as tables can be run, loaded/offloaded independently without interrupting the adjacent table’s cutting cycle. Additionally, the tables may be run with the two tables electronically locked together for those occasional large parts which need to span a larger cutting envelope. With a machine on your production floor delivering such a versatile combination of cutting power and adaptability – while offering the capability of maintaining continuous operation (pendulum processing) to maximize daily output – the E Series CNC machining center by C.R. Onsrud consistently delivers top-of-class performance to ensure your machine will always be making you money.

Specifications

ManufacturerOnsrud E Series 148E
ModelE Series
ConditionNew
Number of Axes3 or 4
Table Size60” X 144”
Z Clearance14”
X-Axis Travel82"
Y-Axis Travel212”
Z-Axis Travel12"
Approx. Footprint12’ X 23’
Machining Speed4000 ipm
X & Y Rapid Traverse5600 ipm
Standard Spindle18HP 24,000 rpm
Tool ShankHSK 63F
Standard Tool Capacity12
Standard Vacuum Zones4
