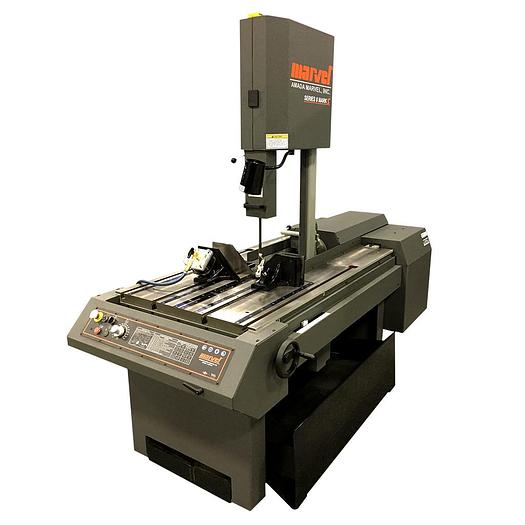

8-MARK-II
Contact us for price
orCall 832-509-1089
Specifications
| Condition | New |
| Capacity: 90° | 18″ x 22″ |
| Capacity: 45° | 18″ x 12.75″ |
| Speed range | 50-450 fpm infinitely variable speed drive system. |
| Front-mounted speed control | Allows blade speed to be adjusted from operator’s control station. |
| Feed range | 0 – 140 lbs. infinitely variable direct reading scale balance beam. |
| T-slotted work table | Work area 24.25″ x 33″; table height 34.5″; four machined T-slots accept .625″ (15.5 mm) T-Bolts. |
| Miter cutting | Column and blade tilt up to 45° right and left of vertical; work always stationary. Built in protractor. |
| Quick-action vise | Maximum opening 18″. Jaws can be shifted to either right or left side of blade. Jaws are 6″ high, 12″ wide. |
| Automatic stops | Adjustable stops can be pre-set to stop advance and return of blade and to stop motor at any location within the 18″ travel of the blade. |
| Coolant system | Built in with Flood system, available with added optional drop lubrication system. Controlled by on-off selector switch at operator’s station. Tank capacity 21 gallons. |
| Flushing hose | Washes chips from hard-to-get-at places reducing clean-up time. |
| Power chip brush | Together with blade wipers and flood coolant keep blade teeth free of chips. |
| Carbide guide system | Guides are stationary and can be rotated to present new guiding surface to the blade. Upper and lower guides have preloaded carbide-faced back-up blocks to support back edge of the blade. |
| Blade | 14′ 6″ Long x 1″ Wide x .035″ Thick. One Welded-Edge Band Blade is furnished with each machine. |
| Motors | Main; 5 H.P., 1800 RPM, totally enclosed fan cooled. Coolant Pump; 1/8 H.P. enclosed motor-built-in integrally. |
