ROTAWELD D0200

ROTAWELD D0200
Contact us for price
orCall 832-509-1089
Description

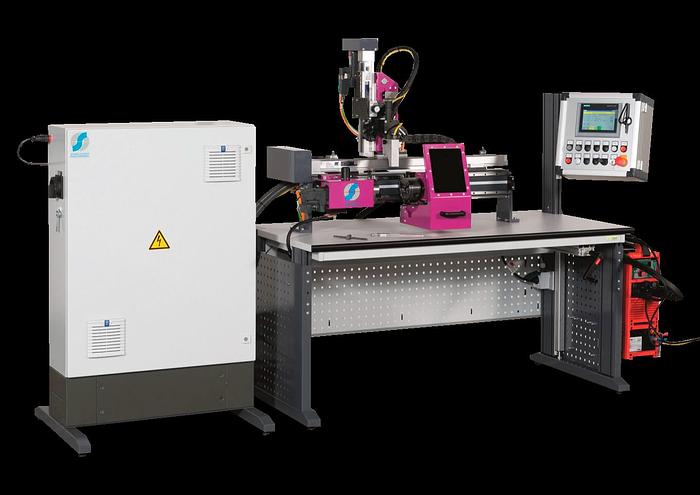

The ROTAWELD machine system is our platform for the widest range of tasks in circumferential seam welding. Precise servo-motor rotation axis and the extensive circular seam control form the basis for circumferential seam welding machines. Machine sizes, part holders, welding equipment, torch holders and any additional axes required are designed specific to the customer and their products.
Technical Data
ROTAWELD
D0200-L0500-HW032
D0200-L1100-HW032
Max. part diameter
200 mm
200 mm
Distance between centres
500 mm
1100 mm
Max. swing
110 mm
110 mm
Spindle thru bore
32 mm
Max. part weight
25 kg
Welding Process
TIG, GTAW, Plasma
Gas
Welding Gas, Trailing Gas
Welding Speed (circumferential)
10 cm/min – 150 cm/min
Control
Siemens ET200S
Operator Panel
Siemens Comfort-Panel 7,0”, Touch-colour display
Welding Interface
BUS
Standard
CE-Mark
Electric Supply
400/230 Volt / 3 / N / PE; 50/60 Hz; TN-grid
Air Supply
6 bar, dry, filtered
Ambient Temperature
+ 10°C to + 35°C
Specifications
Condition | New |
