CORNERWELD 300/500

CORNERWELD 300/500

Contact us for price

orCall 832-509-1089

Description

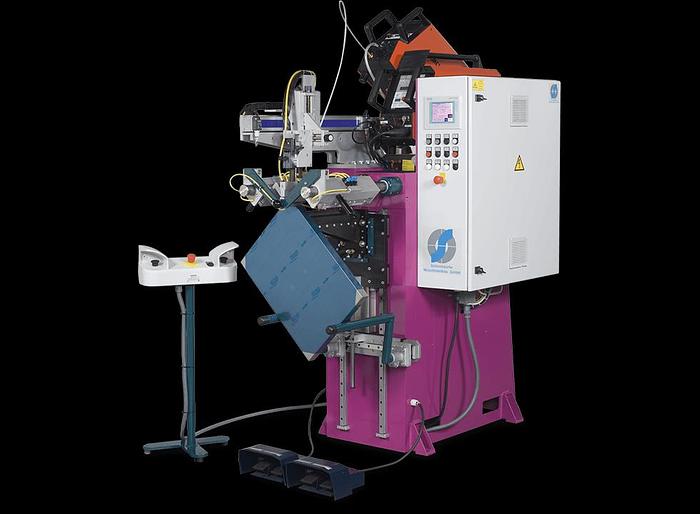

CORNERWELD corner welding machines have been developed to weld sheet metal plates in 90° joints. Precise clamping technology with cooling system and inert gas supply combined with a convenient machine control to control welding cycles ensure high-quality corner welding seams. The highly flexible clamping system is designed to clamp and weld diverse part geometries on one unit. The maximum welding length is 300 mm or 500 mm depending on the machine model. The maximum inward return flange is 42 mm. Moreover, workpieces with max. 80 mm outward return flanges can be clamped. Common applications for corner seam welding include control cabinets made of steel and stainless steel, catering kitchens as well as sanitary and laboratory furniture. CORNERWELD corner seam welding machines are also suitable for welding of larger rectangular tanks, such as ultrasonic cleaning tanks. Technical Data CORNERWELD 300-HH-42-80 500-HH-42-80 Welding length up to 300 mm 500 mm Component dimensions min. more information in our data-sheet Component dimensions max. more information in our data-sheet Clamping height above ground 1220 mm Material Type Stainless Steel, Mild Steel, Galvanised Steel, Aluminium Material Thickness 0,4 mm – 3,0 mm Inward return flange max. 42 mm Outward return flange max. 80 mm Internal clamping Tool Hard Wearing Copper (CuCrZr), Stainless steel (Option) Clamping Finger Hard Wearing Copper (CuCrZr), Stainless steel (Option) Clamping System Pneumatic, Pre-clamp feature Arc Length Constant (over whole welding length) Welding process TIG Welding direction free selectable Gas Torch Gas, Backing Gas, Trailing Gas Cooling Circuit Mandrel (Internal clamping tool), Torch Control Siemens S7-ET 200S Operator Panel Siemens Comfort-Panel 7,0ʺ TFT colour display, touch operation Motor Siemens Simodrive Posmo Welding Interface Roboterinterface, Profibus Standard CE-Mark or UL-Standard (Option) Electric Supply/ Input 400/230 Volt / 3 / N / PE; 50/60 Hz; TN-grid Air Supply 6 bar, dry, filtered Ambient Temperature + 10°C to + 35°C Colour RAL 4006 / 7015 or to customer requirements Dimensions (W x L x H) 800 mm x 1200 mm x 1800 mm 800 mm x 1400 mm x 1800 mm Weight 860 kg 980 kg

Specifications

ConditionNew
