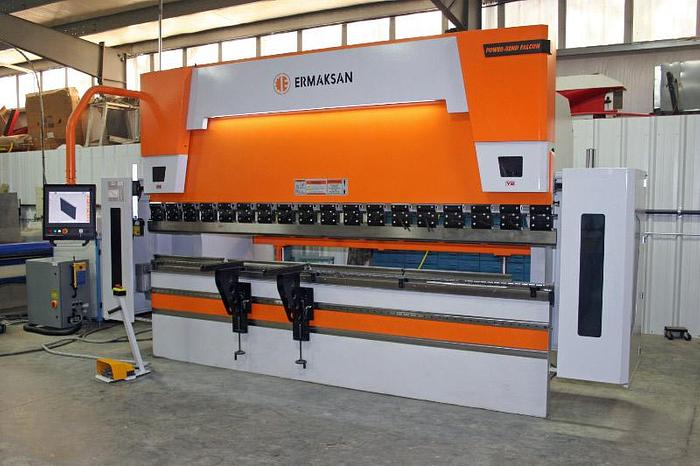

ERMAKSAN FALCON BEND 3760-220 220 ton 12'
ERMAKSAN FALCON BEND 3760-220 220 ton 12'
Contact us for price
Description
Power-Bend Falcon Series machines redesigned based on users preferences to become a unique machine with its individual electronic and mechanical features. Power-Bend Falcon Series are among the highest rated machines which will help you increase your productivity and keep costs at minimum level with its user friendly CNC controller and low cost hydraulic maintenance.
Ermaksan Falcon Bend 3760-220 220Ton 12'
DELEM DA-58T, TOUCH SCREEN
CNC CONTROLLER TOTAL OF 4 AXIS (Y1,Y2, X, R) X:800 MM, R=250MM
ERMAKSAN TWO AXIS back gauge (X:800MM, R=250MM)
AMERICAN PROMECAM QUICK RELEASE ROLLERI TOP TOOL ROLLERI - 0813/011/11 4 V DIE BOTTOM TOOL
10.8" HIGH STROKE
16.1" THROAT DEPTH
MOTORIZED CROWNING SYSTEM
230 or 460 VOLTAGE, 3PH, 60HZ
REAR GUARD SIDE GUARDS WITH SWITCH DOUBLE FOOT PEDAL
CONTROLLER HOERBIGER HYDRAULIC SYSTEM
SIEMENS ELECTRIC SYSTEM
SLIDING FRONT SUPPORT ARMS
STANDARD NARROW TABLE
Specifications
| Manufacturer | ERMAKSAN |
| Model | FALCON BEND 3760-220 220 ton 12' |
| Condition | New |
| Stock Number | NM-10795-140 |
| Bending Length | 148" |
| MAX. POWER | 242 Tons |
| AXIS NUMBER OF MACHINE | Y1,Y2,X,R |
| Y RAPID SPEED | 7.1" INCH/S |
| Y WORKING SPEED | .39 INCH/S |
| Y Return Speed | 6.30 INCH/S |
| Crowning | Motorized |
| TRAVEL IN X AXIS | 31.5" INCH/S |
| SPEED OF X AXIS | 19.7" INCH/S |
| TRAVEL OF R AXIS | 9.8 INCH/S |
| Speed OF R AXIS | 13.8" INCH/S |
| MACHINE LENGTH | 200.8" |
| MACHINE WIDTH | 88.6" |
| MACHINE HEIGHT | 114.2" |
| WEIGHT | 28211.2 lbs |
