1998 Amada Amada Vipros 368 King II

Contact us for price

orCall 832-509-1089

Description

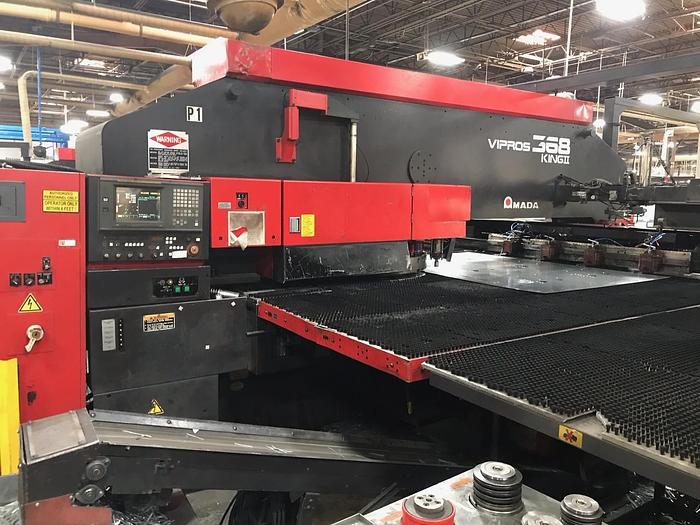

33 TON AMADA VIPROS 368 KING II HYDRAULIC TURRET PUNCH WITH FANUC 18P & PHNC CNC CONTROL & ASR 6 AUTOMATED TOWER Currently under power and Amada service Amada to decommission for rigging and shipment.

Specifications

ManufacturerAmada
ModelAmada Vipros 368 King II
Year1998
ConditionUsed
Stock NumberUM-10795-142
Maximum Sheet Size:60″ (Y) x 157.50″ (X) with one repositioning cycle
Maximum Axis Travel:60″ (Y) x 78.74″ (X)
Max. Linear Table Speed:3150″ per min.
Punching Accuracy:+/-0.004″ Hole to Hole
Maximum Sheet Thickness:0.125″
Maximum Material Weight:132 lb.
Repeatability:+/-0.001″
Press Capacity:33 Tons
Press Stroke:1.575″
Maximum Hole Diameter:4.5″
Tool Type:Amada Thick Turret
Turret Rotation Speed:30 RPM
Turret Capacity:58 Stations (4 auto-index)
Control: Fanuc 18 (with PHNC)
Control Function:X, Y, T & C
Input Method: MDI, Floppy Disk Drive, RS-232
Minimum Command Unit:0.001″ (X, Y)
Minimum Travel Unit: 0.001″ (X, Y)
Operating Modes:Automatic, MDI & Manual
Display Modes:Program Contents, Position Information, Program Check, Parameters, Tool Hit Counter, Self Diagnostics
Interlock Displays:Oil Temperature, Door Open
