1996 Amada Amada Vipros 368 King

1996 Amada Amada Vipros 368 King

Contact us for price

orCall 832-509-1089

Description

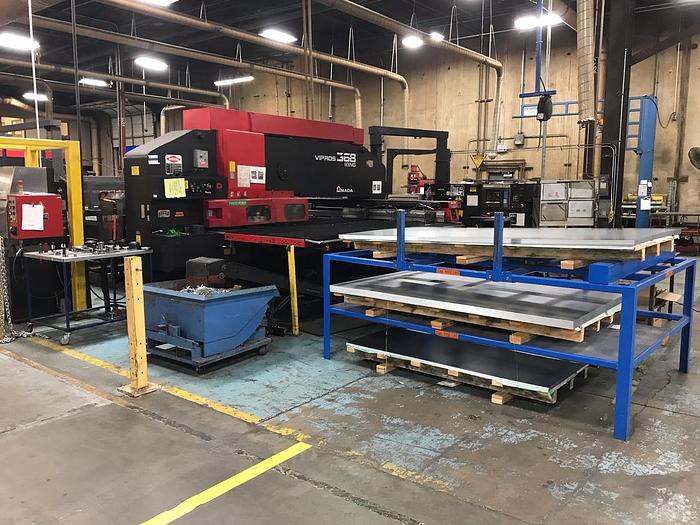

30 TON AMADA VIPROS 368 KING II HYDRAULIC TURRET PUNCH

WITH FANUC 04PC CNC CONTROL

Guide Assemblies

Currently under power and Amada service

Amada to decommission for rigging and shipment.


Specifications

ManufacturerAmada
ModelAmada Vipros 368 King
Year1996
ConditionUsed
Serial Number36820017
Stock NumberUM-10795-142
Maximum Sheet Size:60″ (Y) x 157.50″ (X) with one repositioning cycle
Maximum Axis Travel:60″ (Y) x 78.74″ (X)
Max. Linear Table Speed:3150″ per min.
Punching Accuracy:+/-0.004″ Hole to Hole
Maximum Sheet Thickness:0.125″
Maximum Material Weight:132 lb.
Repeatability:+/-0.001″
Press Capacity:30 Tons
Press Stroke:1.575″
Maximum Hole Diameter:4.5″
Tool Type:Amada Thick Turret
Turret Rotation Speed:30 RPM
Turret Capacity:58 Stations (4 auto-index)
Control: Fanuc -O4P-C
Control Function:X, Y, T & C
Input Method: MDI, Floppy Disk Drive, RS-232
Minimum Command Unit:0.001″ (X, Y)
Minimum Travel Unit: 0.001″ (X, Y)
Operating Modes:Automatic, MDI & Manual
Display Modes:Program Contents, Position Information, Program Check, Parameters, Tool Hit Counter, Self Diagnostics
Interlock Displays:Oil Temperature, Door Open
