1987 Amada Amada Pega 244
No longer available
1987 Amada Amada Pega 244
Description

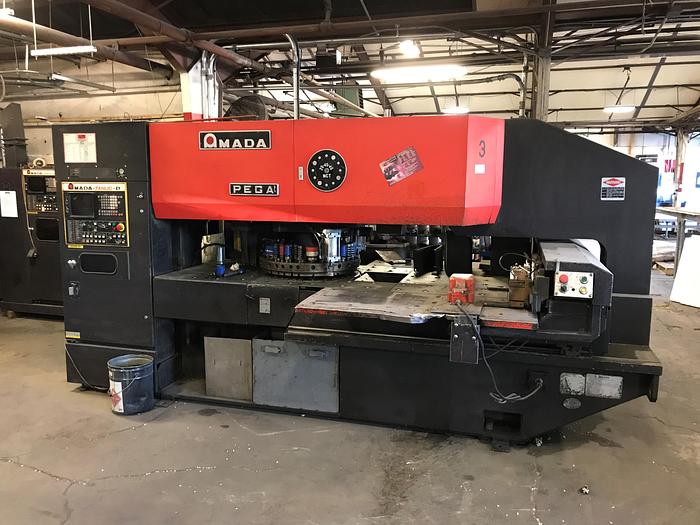

Amada Pega 244
Punch is in working condition has been removed from service to make room for a new machine.
Has been serviced and supported by amada
Decommissioned by Amada service
Amada Fanuc-P controller
Turret Stations 20
Specifications
| Manufacturer | Amada |
| Model | Amada Pega 244 |
| Year | 1987 |
| Condition | Used |
| Stock Number | UM-820 |
| Maximum Sheet Size: | 39.37" X 78.74" |
| Maximum Axis Travel: | 39.37" X -Axis 41" Y-Axis |
| Max. Linear Table Speed: | 1968″ per min. |
| Punching Accuracy: | +/-0.004″ Hole to Hole |
| Maximum Sheet Thickness: | 0.250"(mild steel) |
| Maximum Material Weight: | 110 lb. |
| Repeatability: | +/-0.001″ |
| Press Capacity: | 20 Tons |
| Press Stroke: | 1.575″ |
| Maximum Hole Diameter: | 4.5″ |
| Tool Type: | Amada Thick Turret |
| Turret Rotation Speed: | 30 RPM |
| Turret Capacity: | 36 stations |
| Control: | Amada -Fanuc-P |
| Control Function: | X, Y, T & C |
| Input Method: | MDI, Floppy Disk Drive, RS-232 |
| Operating Modes: | Automatic, MDI & Manual |
| Display Modes: | Program Contents, Position Information, Program Check, Parameters, Tool Hit Counter, Self Diagnostics |
| Machine Dimensions | 157" X 90" X77" |
| Machine Weight | 18,740 LBS |
