Description

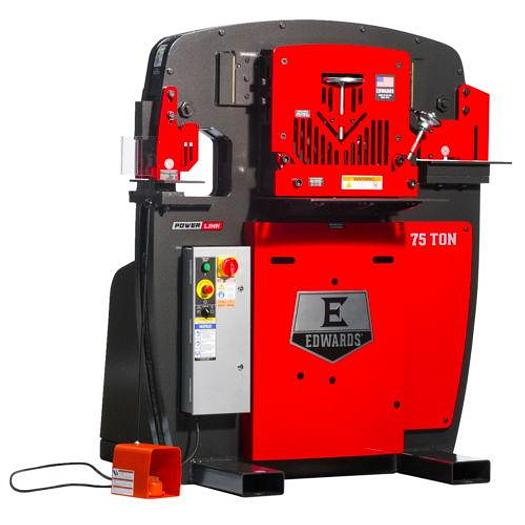

Edwards 75 Ton Ironworker
FLEXIBILITY
• Four workstations: – Standard (4) – Punch, Flat Bar Shear, Angle Shear & Coper Notcher
• 12 interchangeable Attachments available to tailor the Ironworker to your needs
• 17 optional Accessories available to increase precision and efficiency
PRODUCTIVITY
• Compact machine that allows for fast and easy transitions between fabrication operations: punch, shear, notch, bend and cope all in one machine.
• Optimized workstation heights for improved efficiency • Electric foot pedal with integrated jog control
• Adjustable electric stoke control
SAFETY
• Bright LED lights increase visibility
• ANSI B11.5-1988(02) Compliant Guarding
• ETL Certified Controls
• Integrated Lock-out/Tag-out system with E-Stop for added safety
PERFORMANCE
• Durable, heavy-duty, Made In USA steel construction
• Vertical movement produces even pressure resulting in precise punching and shearing with minimal distortion that results in extended tooling life
• Punches are easily changeable, long-lasting and available from 1/8” to 4” diameters along with square, oblong, hex, metric, and custom shapes
• Flat Bar Shear blades are made of precision machined, high-quality tool steel with 4 cutting edges for extended life
• Angle Shear blades have 2 corner radii for both thin and thick material and are made of precision tool steel with 2 cutting edges for extended life
Specifications
| Manufacturer | Edwards 75 ton |
| Model | 75 Ton Ironworker |
| Condition | New |
| Punch Rating (tons | 75 |
| Punch Max Capacity (In.) | 1-1/16 diam. in 7/8 mild steel |
| Punch Work Height (In.) | 39-1/16 |
| Punch Throat Depth (In.) | 10 |
| Punch Stroke (In.) | 1-13/16 |
| Flat Bar Shear Max Capacity (In.) | 1/2 x 14 3/4 x 10 |
| Flat Bar Shear Work Height (In.) | 37 |
| Flat Bar Shear Max Round Capacity (In.) | 1 diam. |
| Flat Bar Shear Max Square Capacity (In.) | 1 |
| Angle Shear Max Capacity (In.) | 5 x 5 x 1/2 |
| Angle Shear Work Height (In.) | 43-15/16 |
| Coper Notcher Max Capacity (In.) | 2-1/2 x 5 x 1/2 |
| Coper Notcher Work Height (In.) | 42 |
| Motor | 5 or 7.5 |
| Amps | 23 |
| Hydraulics (GPM) | 10-1/2 |
| Hydraulics (PSI) | 3500 |
| Hydraulic Reservoir (gal.) | 17 |
| Product Dimensions (In.) | 45 x 50 x 60 1/4 |
| Shipping Dimensions (In.) | 46 x 69 x 63 |
| Weight (lbs.) | 4,100 |
