ERMAKSAN FALCON BEND 4270-500 (14’ - 550 ton)

ERMAKSAN FALCON BEND 4270-500 (14’ - 550 ton)

Contact us for price

orCall 832-509-1089

Description

Falcon Bend 4270-500 (14’ - 550 TON)

DELEM DA-58, TOUCH SCREEN CNC CONTROLLER TOTAL OF 4 AXIS (Y1,Y2, X, R) X:800 MM, R=250MM ERMAKSAN TWO AXIS back gauge (X:800MM, R=250MM) AMERICAN PROMECAM QUICK RELEASE ROLLERI TOP TOOL ROLLERI - 0813/011/11 4 V DIE BOTTOM TOOL MOTORIZED CROWNING SYSTEM 230 or 460 VOLTAGE, 3PH, 60HZ REAR GUARD SIDE GUARDS WITH SWITCH DOUBLE FOOT PEDAL CONTROLLER HOERBIGER HYDRAULIC SYSTEM SIEMENS ELECTRIC SYSTEM SLIDING FRONT SUPPORT ARMS STANDARD NARROW TABLE

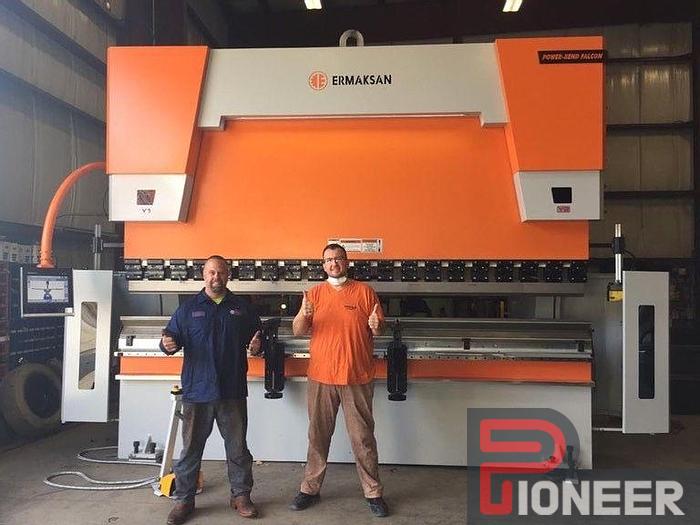

The machines in the picture are for reference only

Install, Traning, 1-year factory warranty, including

Specifications

ManufacturerERMAKSAN
ModelFALCON BEND 4270-100 (8,53’ - 110)
ConditionNew
Stock NumberNM-10795-144
BENDING LENGTH ( A )168.11"
Tonnage550 US Tons
MAX.BENDING CAPACITY(59738 psi) 0.63
AXIS NUMBER OF MACHINEY1,Y2,X,R
FREE DOWN SPEED3.15
BENDING SPEED0.29 in/s
RETURN BACK SPEED2.56 in/s
STROKE ( C ) ( Y1 , Y2 ) 14.76 "
BACK GAUGE STROKE ( X AXIS ) 31.5 "
BACK GAUGE STROKE ( R AXIS ) 9.8 "
DISTANCE BETWEEN HOUSING ( B )141.73 "
THROAT DEPTH ( E )20.08 "
TABLE HEIGHT ( F )43.31"
TABLE WIDTH ( G ) 9.45"
DAYLIGHT ( D )26.57 "
PLANT VOLTAGE230 or 460
OIL CAPACITY132 US Gallons
MAX. PRESSURE3911 psi
MACHINE LENGTH ( L )220 "
MACHINE WIDTH ( W ) 152 "
MACHINE WIDTH (K)104"
MACHINE HEIGHT ( H )152"
Weight72661 lbs
