ERMAKSAN FALCON BEND 3760x175TN (148’ - 175)
ERMAKSAN FALCON BEND 3760x175TN (148’ - 175)
Contact us for price
orCall 832-509-1089
Description
Falcon Bend 3760x175TN (148’ - 175)
DELEM DA-58, TOUCH SCREEN CNC CONTROLLER TOTAL OF 4 AXIS (Y1,Y2, X, R) X:800 MM, R=250MM ERMAKSAN TWO AXIS back gauge (X:800MM, R=250MM) AMERICAN PROMECAM QUICK RELEASE ROLLERI TOP TOOL ROLLERI - 0813/011/11 4 V DIE BOTTOM TOOL 10.8" HIGH STROKE 16.1" THROAT DEPTH MOTORIZED CROWNING SYSTEM 230 or 460 VOLTAGE, 3PH, 60HZ REAR GUARD SIDE GUARDS WITH SWITCH DOUBLE FOOT PEDAL CONTROLLER HOERBIGER HYDRAULIC SYSTEM SIEMENS ELECTRIC SYSTEM SLIDING FRONT SUPPORT ARMS STANDARD NARROW TABLE

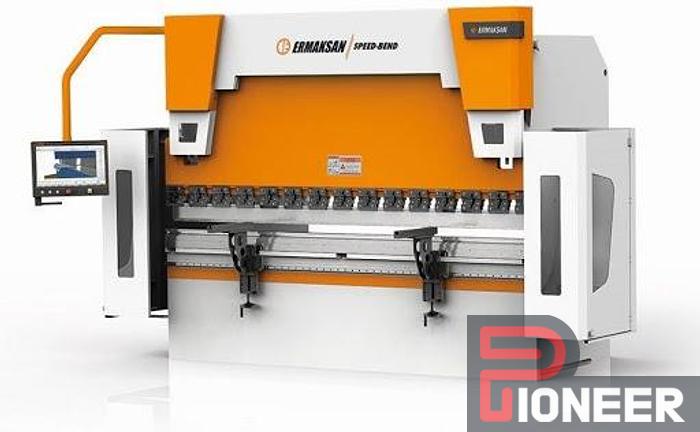

The machines in picture are for reference only
Specifications
| Manufacturer | ERMAKSAN |
| Model | FALCON BEND 3760x175TN (148’ - 175) |
| Condition | New |
| Stock Number | NM-10795-144 |
| BENDING LENGTH ( A ) | 144" |
| Tonnage | 193 US Tons |
| MAX.BENDING CAPACITY | (59748 psi) 0.20 " V=1.96" |
| AXIS NUMBER OF MACHINE | Y1,Y2,X,R |
| BENDING SPEED | 7.09 in/s |
| RETURN BACK SPEED | 6.1 in/s |
| STROKE ( C ) ( Y1 , Y2 ) | 10.8 " |
| BACK GAUGE STROKE ( X AXIS ) | 31.5 " |
| BACK GAUGE STROKE ( R AXIS ) | 9.8 " |
| DISTANCE BETWEEN HOUSING ( B ) | 128 " |
| THROAT DEPTH ( E ) | 16.1 " |
| TABLE HEIGHT ( F ) | 35.4 " |
| TABLE WIDTH ( G ) | 3.5 " |
| DAYLIGHT ( D ) | 20.9 " |
| PLANT VOLTAGE | 380 V IP 54 - |
| OIL CAPACITY | 52.8 US Gallons |
| MAX. PRESSURE | 3555 psi |
| MACHINE LENGTH ( L ) | 192,9" |
| MACHINE WIDTH ( W ) | 84.6 " |
| MACHINE HEIGHT ( H ) | 110,2 " |
| Weight | 22284 lbs |
