ERMAKSAN SpeedBend SB (3760 -320) 14'-320 ton

ERMAKSAN SpeedBend SB (3760 -320) 14'-320 ton

Contact us for price

orCall 832-509-1089

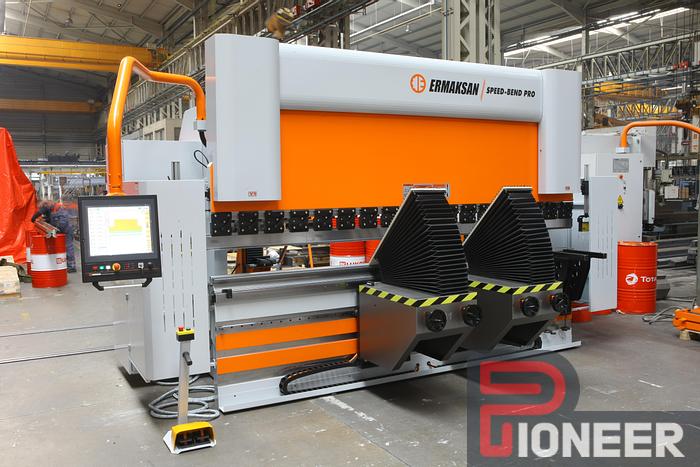

SPEED-BEND Synchronized Hydraulic Press Brake

  • Mono block, welded steel frame rigid to deflection and high tensile with ST44 A1 material.
  • 6 axes (Y1, Y2, X, R, Z1, Z2)
  • Back gauge system with X, R, Z1, Z2 axis driven by AC servo with colored graphics.
  • HOERBIGER servo hydraulic system.
  • CNC controlled motorized anti-deflection system.
  • Hardened and ground standard sectioned top and 4V-Die bottom tools (835 mm section).
  • Easy to clamp tool holding system with upper and lower tools.
  • Standard graphic controllers can be selected from: ER-90 Plus 3D colour graphical touch screen controller with offline software, Cybelec ModEva 15T 3D colour graphics with PC-ModEva offline software, Delem DA-66T 2D with colored graphics.
  • Electrical panel with cooling system designed to meet CE standards and composed of automation and electrical equipment with SIEMENS branding.
  • Ergonomic user friendly, pendant control panel.
  • Back light safety guards (category-4)
  • Front side covers with safety switches.
  • Synchronization of Y1+Y2 axis provided by linear encoders with 0,01 mm tolerances.
  • Foot pedal suitable to CE regulation.
  • Sliding front support arms with T slot and mm/inch rulers.
  • .


• Graphical control units;


• 5, 6 axes backgauge options

• LEUZE light protection system

• DSP MCS AP photo electric laser front protection

• Laser angle measurement system

• Hydraulic and hydro-dynamic crowning systems

• Pneumatic top tool holder system

• CNC controlled automatic bending sheet support arms (AP3+AP4 axes)

• Hydraulic oil cooling and heating systems

• Automatic sliders lubricating system

• Special throat depths (500, 600 and 750 mm and above)

• Tool storage cabinet

• Led bar


ModelSpeedBend SB (3760 -320) 14'-320 ton
Bending length14'
Bending power350 US Ton
Distance Between Columns168"
Total machne AxisY1,Y2,X,R,Z1,Z2
Y Rapid Speed5,51"/SEC
Travel In X Axis31.50"
Speed of X Axis19.69/ IN/S
Travel In R axis9.84 INC
Back Guage Finger Blocks2
Throat Depth (E)16.14"
Table Height (F)35.43"
Tabel Width (G)8.66"
Machine Dimensions220.47"L 96.46W 125.98" H
Weight49,833 LB
