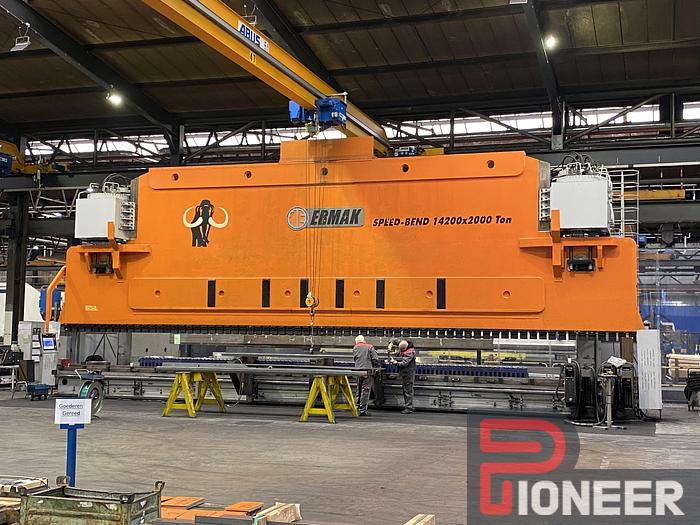

2013 ERMAKSAN Speedbend 14200-200 ton 47'x2200 ton

2013 ERMAKSAN Speedbend 14200-200 ton 47'x2200 ton

Contact us for price

orCall 832-509-1089

Description

Speed bend PRO 47' 2200 Ton

Delem Controller 66T

Ermaksan tooling

CNC Crowning

CNC back gauge

Factory decommission and install

Under power for inspection



BENDING LENGTH ( A ) 14200 mm

MAX. POWER 2000 ton

MAX.BENDING CAPACITY (42 kgf/mm 2) 25 mm V= 280 mm


MAX.BENDING CAPACITY (52 kgf/mm 2) 23 mm V= 280 mm


MAX.BENDING CAPACITY (57 kgf/mm 2) 22 mm V= 280 mm


MAX.BENDING CAPACITY (63 kgf/mm 2) 21 mm V= 280 mm


MAX.BENDING CAPACITY (70 kgf/mm 2) 19 mm V= 280 mm


AXIS NUMBER OF MACHINE Y1,Y2,X1,X2,R1,R2,Z1,Z2 -

FREE DOWN SPEED 70 mm/s

BENDING SPEED 6,2 mm/s

RETURN BACK SPEED 42 mm/s

STROKE ( C ) ( Y1 , Y2 ) 610 mm

BACK GAUGE STROKE ( X AXIS ) 1000 mm

BACK GAUGE STROKE ( R AXIS ) 250 mm

DISTANCE BETWEEN HOUSING ( B ) 11500 mm

CROWNING HYDRAULIC -

THROAT DEPTH ( E ) 1000 mm

TABLE HEIGHT ( F ) 800 mm

TABLE WIDTH ( G ) 500 mm

DAYLIGHT ( D ) 1000 mm

PLANT VOLTAGE 380 V

IP 54 -

MAIN MOTOR 2x75 kW

BACK GAUGE MOTORS (X1,X2,R1,R2,Z1,Z2) 2x7,2+4x4,78 Nm

PLANT TEMPERATURE 0-50 oC

MAX. NOISE 70 dB

OIL CAPACITY 2x1500 lt

MAX. PRESSURE 200 bar

MACHINE LENGTH ( L ) 15700 mm

MACHINE WIDTH ( W ) 4800 mm

MACHINE HEIGHT ( H ) 6200 mm

PART OF MACHINE UNDERGROUND ( N ) 2315 mm

DEPTH ( T ) 1155 mm

WEIGHT 387428

Specifications

ManufacturerERMAKSAN
ModelSpeedbend 14200-200 ton 47'x2200 ton
Year2013
ConditionUsed
Stock NumberSBP14200
Bending Length47'
Tonnage2200
Distance Between Columns45'
Machine DimensionsLength 618" Width 188" Height 244"
MachineWeight854,132LB
