Plasma Systems CuttingEdge CNC Cutting Machine Model 2010-H      2007

               Cutting width - 120 inches

               Cutting length - 300 inches plus machine parking space of 72"

               Heavy-duty tubular steel design for accuracy

               Rack and pinion drive both X and Y axis

               Heavy-duty 22 pound per foot rail system with adjustable pedestals

               Rail height approximately 24 inches

               Heavy-duty power track on Y axis

               Heavy-duty power track on rail axis

               Traversing speed 1 - 800 inches per minute

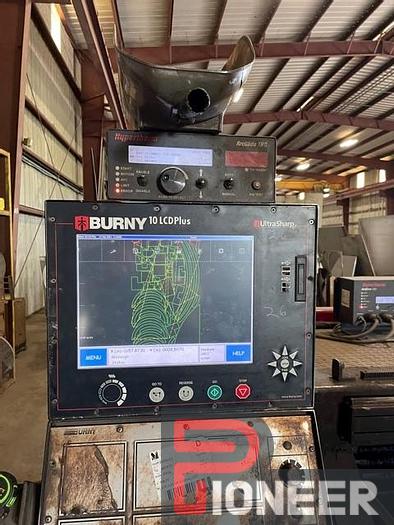

               Cleveland Machine Controls Burny 10LCD Plus

                               Processor: 2 GHz Intel (or faster)

                               Operating System: Windows XP Embedded

                               Storage space: 30GB hard drive (or larger)

                               Operating Environment: 32 to 122 degrees F.

                               Connectivity Options: USB, floppy disk drive, Networking

                               8 Direction keypad Start, Stop, Go To, Reverse and Operator's Console

50 Standard shape library

                               Create/edit (MDI)

                               Built-in strip mode

                               Inch/Metric operation

                               Choice of run modes (automatic, single step, manual and test)

                               Automatic accel/decel in corners

                               Cut loss recovery

                               Automatic or manual lead-in

                               Dynamic repositioning

                               X/Y Jog controls Selectable kerf compensation Program scaling, editing and mirror imaging Program rotation in .01 increments Multiple USB ports

               Cleveland Motion Control's Operator's Station

               400 Watt Yaskawa AC Brushless Three-axis drive system

               Stober Precision Planetary Gearboxes

                               3 arc minutes of backlash or less

One Hypertherm HPR260 High density plasma system with Command torch height control and automatic gas console

Pneumatic Break-away for plasma torch

                               Provides a positive variable pressure to hold unit rigid

                               The breakaway threshold is fully adjustable

                               Non-compressive metal to metal seal for reliability

                               Provides protection in X, Y and Z axis

                               Senses angular, compressive and rotational forces

                               Pressurized in one position to ensure accurate positioning
